Blackmagic PYXIS Monitor

Overview

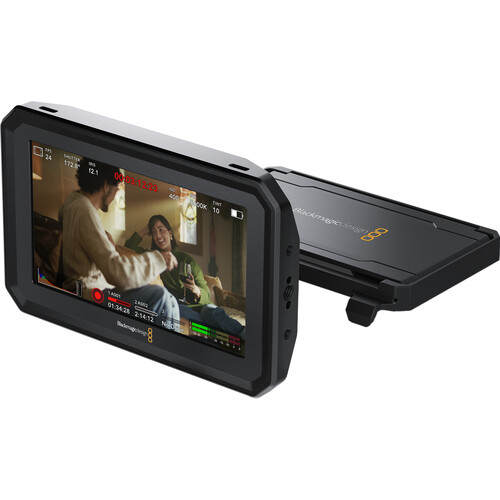

The Blackmagic PYXIS Monitor is a versatile 5-inch HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It features a full 1920 x 1080 LCD capacitive touchscreen display with a brightness of 1500 nits and frame rates of up to 60fps. Additionally, it has a rear facing LED tally light and an accelerometer that automatically rotates the image when the monitor is mounted upside down. The USB-C with locking connector allows for video, power, data, and software updates, making it a convenient and practical option for monitoring and camera control.

The Blackmagic PYXIS Monitor also offers on-screen controls that allow for easy adjustments of monitor overlays, frame rate, shutter, iris, timecode, ISO, white balance, tint, power, and more. It also includes assignable function buttons and presets for quick access to frequently used settings. With multiple mounting points and compatibility with various Blackmagic cameras, the PYXIS Monitor is a reliable and versatile option for any production setup.

Included in box
1x Blackmagic PYXIS Monitor
1x Blackmagic PYXIS Clip On Sunshade
1x Welcome wallet with QR code for software download
1x Blackmagic Design Sticker
1 Year Limited Manufacturer’s Warranty

About the Blackmagic PYXIS Monitor
Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high brightness screen makes monitoring easy, even in bright sunlight and includes a removable sunshade that also folds up to protect the monitor. Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power and camera control.

Control

On Screen Controls

Tap screen to control Monitor Overlays,
Frame Rate, Shutter, Iris, Timecode,
ISO, White Balance, Tint, Power,
Record Start/Stop, Media, Audio,
Focus Zoom, Digital Slate and camera menus.

Button Controls
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.

Function Button Presets

FPS: Preset Value
Iris: Preset Value
WB: Preset Value
ISO: Preset Value
Shutter: Preset Value

Function Button Toggle

Clean Feed
Status Text
Display LUT
Frame Guides
Focus Assist
False Color
Zebra
Grid
Safe Area Guide
Off Speed Rec
Focus Zoom
Focus
Record
Auto White Balance
Color Bars
Playback
False Color + Zebra
OIS
Stream
Still

Mounting Points

1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.
2 x M4 bottom mounting points.
1 x 1/4-20 side mounting point with ARRI locating pin pattern.
2 x M4 side mounting points.

Compatible Cameras

Blackmagic PYXIS 6K
Blackmagic PYXIS 6K PL
Blackmagic PYXIS 6K EF
Blackmagic URSA Cine 12K LF
Blackmagic URSA Cine 17K 65

Operating Temperature 0°to 40°C (32° to 104°F)
Storage Temperature -20°to 60°C (-4° to 140°F)
Relative Humidity 0% to 90% non-condensing
Dimensions 92mm H x 142.5mm W
Weight 209g

Display Size
5 inch.

Display Resolution
Full 1920 x 1080.

Display Type
LCD capacitive touchscreen.

Display Brightness
1500 nits.

Frame Rates
Up to 60fps.

Tally
Rear facing LED tally light.

Accelerometer
Automatically rotates image when monitor mounted upside down.

USB-C with Locking Connector
Video, power, data and software updates.
