Overview

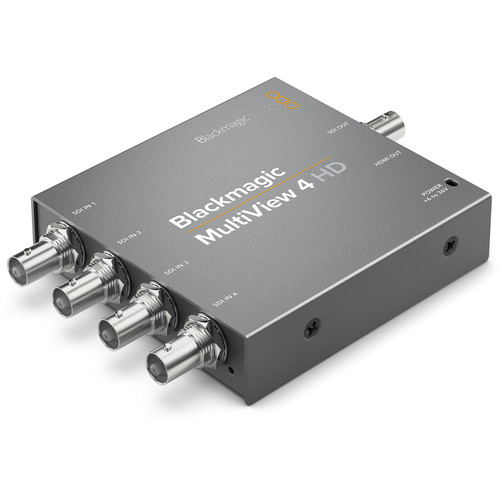

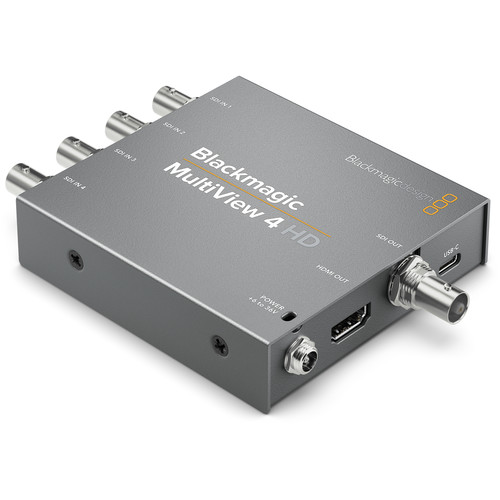

The MultiView 4 HD is a budget-friendly multi viewer that allows you to monitor up to four different SDI video sources simultaneously on one display. Each view is independent with customizable overlays such as labels and audio meters. With full frame re-synchronisation, you can mix and match video signals of different frame rates. The multi rate 3G-SDI connections are compatible with all SD and HD equipment and formats up to 1080p60, and you have the option of using 3G-SDI or HDMI outputs.
Not only is the MultiView 4 HD designed for 24/7 reliability, but it is also compact, durable, and easy to use. Its all-metal construction makes it suitable for outdoor broadcast environments or behind equipment. Simply connect your sources and the multi viewer will automatically output them in a 2×2 grid on one display. With built-in switches, you can control labels, borders, and audio, making it a convenient solution for live events and outside broadcast trucks. Combine it with an HDMI television for an affordable professional multiview experience.
Included in box
1 x MultiView 4 HD
1 x +12V Universal Power Supply with international socket adapters
1 x Instruction Manual
About the Blackmagic MultiView 4 HD
Monitor up to four different SD and HD Sources on the same display at the same time
The MultiView 4 HD model is a low cost multi viewer that lets you simultaneously monitor 4 different SDI video sources on a single display. Each view is a completely independent video monitor with overlays that you can turn on and off such as custom labels, audio meters and more. Full frame re-synchronisation on each input lets you monitor any combination of video signals, even if they are different frame rates. The multi rate 3G-SDI connections are compatible with all existing SD and HD equipment and formats up to 1080p60, including Level A and B devices. Plus, you get both 3G-SDI and HDMI outputs so you can use traditional SDI displays or even low cost big screen televisions.
All Blackmagic MultiView models are designed to be durable and rugged enough for use out in the field or back in the studio, and are built for 24/7 dependability.
Designed to be small, durable and easy to use

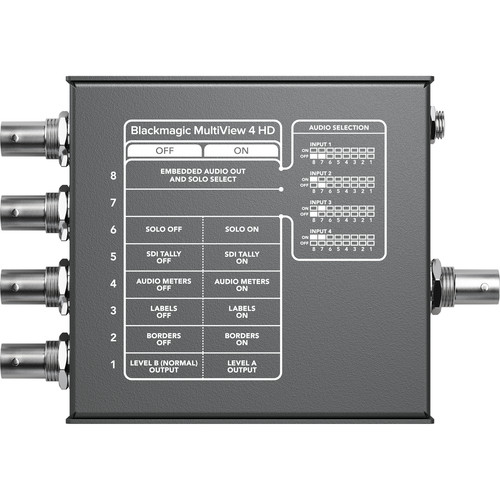

MultiView 4 HD features a very small, all metal design that’s extremely durable so it can be used in harsh outdoor broadcast environments or installed behind equipment. All you have to do is connect your sources and it will automatically output them in a 2×2 grid on a single display. MultiView 4 HD features built in switches that can be used to turn labels on and off, add borders, select audio and more. Whether you’re in an outside broadcast truck or on location at a live event, you can combine MultiView 4 HD with an HDMI television and build the world’s most affordable professional multiview solution.
SDI Video Inputs 4x 10-bit SD-SDI and HD-SDI
SDI Video Outputs 1x HD-SDI
SDI Rates 270Mb, 1.5G, 3G
SDI Video Multi View Outputs 1x 10-bit HD-SDI
HDMI Video Multi View Outputs 1x HDMI type A connector. Output supports EDID of the monitor
SDI Reclocking On all SDI outputs, auto switching between standard definition or high definition
Reference Input None
Multi Rate Support Auto detection of SD or HD
Updates USB 2.0 high speed (480Mb/s) interface
Configuration USB 2.0
Low cost HD multi viewer
Multi rate SDI inputs with full frame re-synchronisation
