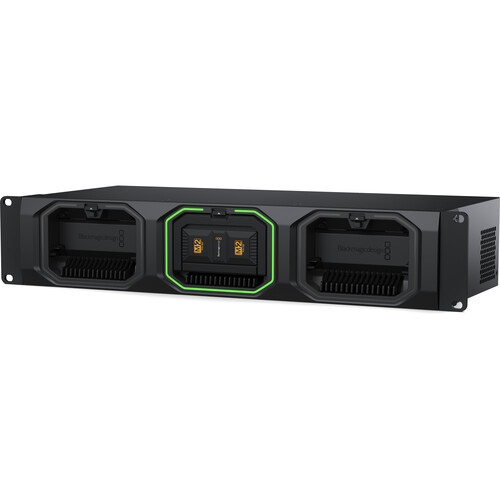

Blackmagic Media Dock

Overview
The Blackmagic Media Dock is a powerful tool that streamlines the post production process. With the ability to connect up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras, it allows for high speed network sharing and upload. This means that multiple edit stations can work simultaneously and directly on the media, saving time and increasing efficiency. The dock also features 4 x 10G Ethernet ports, providing even more connectivity options.

In addition, the Blackmagic Media Dock includes Ethernet over USB-C and dual AC power inputs for added redundancy. This ensures a reliable and stable connection for uninterrupted workflow. The dock also has an HDMI output, allowing for real-time monitoring of media on a TV or monitor. Overall, the Blackmagic Media Dock is an essential tool for any post production team looking to optimize their workflow and increase productivity.

Included in box
1x Blackmagic Media Dock
1x Welcome wallet with QR code for software download

About the Blackmagic Media Dock
Blackmagic Media Dock accelerates your post production workflow by enabling high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras. 4 x 10G Ethernet ports allow 4 separate edit stations to be connected and edited (?) directly. Blackmagic Media dock also has Ethernet over USB-C, dual AC power inputs for redundancy and an HDMI output for live monitoring of media in real time on a TV or monitor.

Connections
Interface 3 x removable and hot-swappable Blackmagic Media Modules.
10G Ethernet Ports 4 x 10G BASE-T
USB-C Port 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
HDMI Monitor Outputs 1
Computer Interface USB-C or Ethernet for shared file access, configuration and software updates.
File Sharing Protocol
Protocol SMB
Computer Connections 50 max.
Cloud Synchronization
Compatible Services Dropbox
Google Drive
Storage
Storage Type Up to 3 Blackmagic Media Modules.
External Storage Format Blackmagic (formatted in camera)
Displays
HDMI Monitor Out Standards 1080p50, 1080p59.94, 1080p60
Monitor Out Displays Device Name, storage capacity and use, Cloud Sync status, User Activity,
Hardware Status, storage map, network data rate graph.
Status Indicator LED bezel indicator lights around media module bays.
Device Control
External Control USB-C or Ethernet for configuration and software updates.
Software
Software Included Blackmagic Cloud Setup Utility
Blackmagic Proxy Generator Lite
Internal software upgrade via Blackmagic Cloud Setup using USB-C port
Operating Systems Mac 14.3 Sonoma or later.
Windows 10, 64-bit.
Windows 11.
Power Requirements
Power Supply Internal 100 – 240V AC 50/60Hz with IEC C14 mains input.
Power Usage TBA
Physical Installation 2 rack units.
Physical Specifications 482 mm (L) x 206 mm (W) x 90 mm (h)
Weight 4.96kg
Environmental Specifications
Operating Temperature 0° to 40° C (32°to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non- condensing
Warranty 12 Month Limited Manufacturer’s Warranty.
