Blackmagic Hyperdeck Studio HD Mini

Overview
HyperDeck Studio is a professional broadcast deck that allows for high-quality video recording and playback using SD cards and SSD media. The newly redesigned models have a modern design and support recording to various file formats such as H.264, Apple ProRes, and DNxHD, with options for PCM or AAC audio. The 4K model also adds support for H.265 files. After recording, the media can be easily accessed on any computer using video software. HyperDeck Studio is perfect for broadcast, live production, and digital signage, with built-in timecode and reference generators for syncing multiple units.

The new HyperDeck Studio recorders feature a sleek and professional design with advanced models having broadcast-style front panel controls and more connections on the rear panel. The LCD screen supports light and dark modes, and the transport control buttons have a professional feel. The Pro models also have a machined metal search dial with an active clutch, similar to traditional broadcast decks. With dual media slots, recording can continue uninterrupted even when changing cards. There are four models of HyperDeck Studio, each with different features and capabilities, making it suitable for various purposes such as recording broadcast masters, live events, digital signage, and archiving old television shows. The bright color LCD status display shows timecode, transport information, and a thumbnail preview of the current clip, making it easy to use for professionals.

Summary
Video Resolution: Up to 1080p60
Inputs: SDI
Outputs: HDMI
Media Type: UHS-I and UHS-II SD cards
Other I/O: 1 x USB 3.0 Type C (Data transfer only)
Included in box
1x Hyperdeck Studio HD Mini

About the Blackmagic Hyperdeck Studio HD Mini

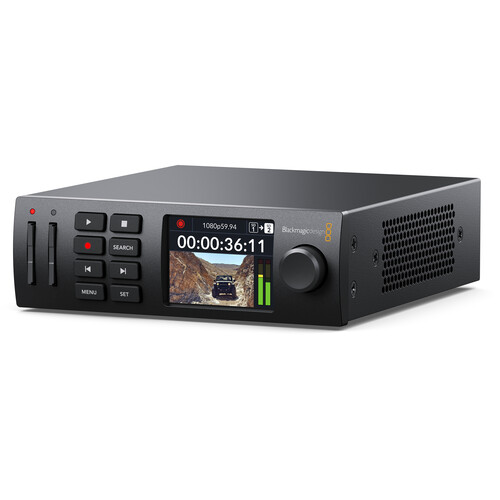

HyperDeck Studio HD Mini

The most compact model of HyperDeck Studio is based on the Teranex Mini form factor. This modular design means that you can use a Teranex Mini Rack Shelf to rack mount 3 HyperDeck Studio HD Minis in a single rack unit, or you can combine them with other products such as switchers, converters or streaming processors. It might be small, but you still get powerful features, such as 3G-SDI in and out, HDMI output, dual SD card media slots, built in sync and timecode generators, front panel controls and both AC and DC power inputs. You can even connect the USB to a computer as HyperDeck Studio HD Mini works like a webcam so you can use any video software!

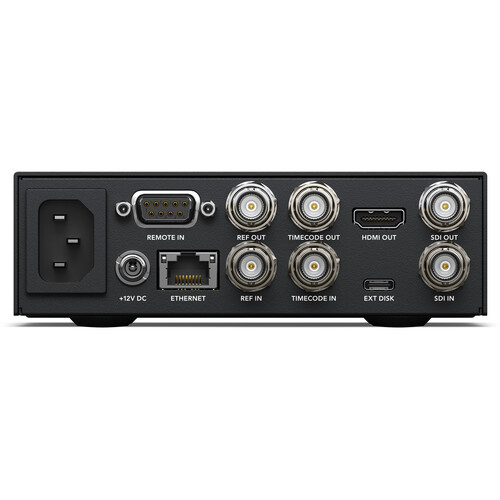

Connections
SDI Video Inputs 1
SDI Video Outputs 1
SDI Rates 270Mb, 1.5G, 3G.
HDMI Video Outputs 1
Screen 2.2 inch LCD
Timecode Connections 1 x BNC In, 1 x BNC Out.
Reference Connections 1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
SDI Audio Inputs 16 channels embedded audio.
SDI Audio Outputs 16 channels embedded audio.
HDMI Audio Outputs 8 channels embedded audio.
Remote Control 1 x RS-422 In.
Recorder Configuration Via user interface or
Blackmagic HyperDeck Ethernet Protocol.
Ethernet 1Gb/s
Computer Interface 1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates.
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K DCI Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2084 and SMPTE 2108‑1.
SDI Metadata Support HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
Supported HDMI Formats 525i59.94 NTSC, 625i50 PAL,
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Audio Sampling Television standard 24‑bit, 48 kHz sample rate.
Video Sampling 4:2:2 YUV
Colour Precision 10‑bit
Colour Space REC 601, REC 709, REC 2020.
HDR Support Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Multi Rate Support Auto detection of SD and HD.
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Media 2 x SD card slots
1 x USB-C 3.0 expansion port for external recording of SD, HD and 2K DCI.
Media Type UHS-I and UHS-II SD cards.
Media Format Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p60. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all progressive formats up to 1080p60.
Control Built in Control Panel
8 buttons for transport and device control with search dial and 2.2 inch color display.
External Control RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Software Included Blackmagic OS
Blackmagic HyperDeck Setup
Internal Software Upgrade
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating Systems Windows 10, 64-bit, Mac 10.15 Catalina, Mac 11.1 Big Sur or later
Displays Built in 2.2 inch LCD for video, audio and timecode monitoring and menu settings.
LED indicator lights above the SD media slots.
Power Requirements
Power Supply 1 x Internal 100 – 240V AC 50/60Hz.
1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use.
Power Usage 50 W max.
Physical Installation One third rack unit width, 1 rack unit height.
Physical Specifications
Dimensions 140 x 44.2 x 177 mm
Environmental Specifications
Operating Temperature 0° to 40° C (32°to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non‑condensing
What’s Included HyperDeck Studio HD Mini
Warranty 12 Month Limited Manufacturer’s Warranty.

Professional broadcast decks that record and playback using SD cards and SSD media!

HyperDeck Studio lets you record broadcast quality video files directly onto SD cards and SSD media! The new redesigned HyperDeck Studios feature modern design with more codecs and quieter cooling. All models now support recording to H.264, Apple ProRes or DNxHD files with either PCM or AAC audio. Plus the 4K model adds support for H.265 files! When you’ve finished recording, media can be mounted on any computer to access the files using your favorite video software. For ISO recording, there’s even built in timecode and reference generators for syncing multiple units! All of these powerful features make HyperDeck Studio perfect for broadcast, live production or multi screen digital signage!

Elegantly Designed Professional Broadcast Deck

The new HyperDeck Studio recorders have been totally redesigned with dozens of new features! The advanced models have new broadcast style front panel controls and more connections on the rear panel. The LCD screen supports both light and dark modes, plus the transport control buttons are stronger with a firm professional feel. The Pro models feature a machined metal search dial with increased mass and a soft rubber surface that feels nice to the touch. Plus the search dial features an active clutch, just like a traditional broadcast deck! With dual media slots, you can change cards without interrupting recording! The advanced models even include a front headphone connection and speaker!

4 Great HyperDeck Models!

There are 4 different models of HyperDeck Studio, perfect for all types of work! The 3G-SDI based HD Mini model records and plays H.264, ProRes or DNxHD files onto SD cards, UHS-II cards or external USB disks in SD and HD formats up to 1080p60. The larger HD Plus model adds better transport controls, front panel headphone and speaker, 6G-SDI with fill and key out, SDI monitoring and records H.264 up to 1080p60 or ProRes and DNxHD up to 2160p30. The full rack HD Pro model is the same as the HD Plus model but adds 2 SSD slots and a machined metal search dial with clutch. The incredibly powerful 4K Pro model records H.264, H.265, ProRes or DNx in SD, HD and Ultra HD in standards up to 2160p60!

HyperDeck Studio HD Mini

Miniaturized deck records H.264, ProRes or DNxHD files onto SD/UHS-II cards or external USB disks in SD/HD formats to 1080p60. Includes timecode and reference generators, 3G-SDI in/out and HDMI out.

HyperDeck Studio HD Pro

Includes all the features of the Plus model, and adds 2 SSD slots as well as the 2 SD card slots. Also includes machined metal search dial with clutch, SDI monitor out and XLR timecode connections.

HyperDeck Studio HD Plus

Includes features of the Mini model plus better transport controls, front panel headphone and speaker, 6G-SDI and fill and key out. Supports all codecs up to 1080p60 and ProRes and DNxHD to 2160p30.

HyperDeck Studio 4K Pro

This extremely powerful Ultra HD model records and plays H.264/5, ProRes and DNx files in all SD, HD and Ultra HD standards up to 2160p60. Records SD and HD in H.264 and Ultra HD in H.265.

Perfect for Live Production, Broadcast and Archive

Mastering Recorder

All models record to H.264, ProRes and DNx files, so are perfect for recording broadcast masters! You can even use PCM or AAC audio, plus the 4K model adds H.265 when recording to Ultra HD files. You get everything you need to send shows to broadcasters and for uploading to YouTube

ISO Recording

All models feature timecode and reference generators, with outputs to loop to other HyperDecks. This means you can build a rack of HyperDeck Studios for ISO camera recording, allowing multi-cam editing after live events! You can even sync cameras to the SDI output and the SDI input has a frame sync!

Digital Signage

HyperDeck Studio is perfect for digital signage as all models have HDMI output for connecting to large screen TVs and projectors. The built in sync generator lets you combine multiple HyperDecks for large multiscreen video walls. There’s even FTP for file upload and a protocol for remote control!

Broadcast Archive

HyperDeck Studio supports all SD and HD standards so it’s ideal for archiving old television shows from broadcast decks such as Digital Betacam, Betacam SP, 1″, U-matic and VHS. You can even record direct to H.264 to maximize storage. For analog decks, just add a Mini Converter Analog to SDI!

Bright Color LCD Status Display

HyperDeck Studio features traditional deck style transport controls, including a search dial for jog, shuttle and scroll. The compact LCD shows timecode and transport information, plus a full color thumbnail preview of the current clip in record or playback. It also displays information about each card’s recording status, along with video format, frame rate information and audio levels, all on the same display! The LCD includes monitoring for video, plus audio level meters, selectable between technically accurate VU or PPM ballistics. The combination of familiar VTR style controls with the built in LCD screen makes HyperDeck Studio incredibly fast to use and very easy to learn!

Traditional Broadcast Deck Controls

HyperDeck Studio includes a traditional broadcast style control panel that’s very fast to use. Simply press the record button and you instantly start recording the video input to a file! You can also change the record file format from the menu. There are transport control buttons for playback, rewind, fast forward, previous clip, next clip and more. The Pro models have a machined metal search dial that supports shuttle, jog and scroll so you can find clips fast. Any button pressed on the front panel is sent to the rear RS-422 remote output for looping control to multiple HyperDecks. The Plus and Pro models also include a front panel speaker and headphone socket for live audio monitoring.

Supports SD Cards, UHS‑II Cards or SSDs

All HyperDeck Studio models support recording to common SD cards and UHS-II cards so you don’t need expensive custom media. However the Pro models also add two SSD slots so you can use two different types of media! SD cards and SSDs are the perfect choice for broadcast media because they are small and very affordable. When using H.264, the files are so incredibly small you get very long recordings even on smaller low cost cards. Plus, you can even record to external USB disks! With H.265, you can record up to 58 hours in 2160p60 Ultra HD or up to 157 hours of H.264 recording in 1080p59.94 on a 1 TB card. That’s over 6 days of recording in HD using a single 1 TB card!

Dual Media Slots For Non‑Stop Recording!

All HyperDeck Studio models feature dual media slots for non stop recording. When the recording card becomes full, recording automatically continues onto the next card. That’s perfect when recording long live events because you can “hot swap” a full card for an empty card while recording continues in the other slot! Each slot has a status indicator to show which card is being used, either red for record or green for playback. Plus all models now feature very long file recordings to a single file for easy file distribution. HyperDeck Studio is easily repairable with each card slot using an individual PCB assembly that can be replaced if it ever becomes worn out from heavy use.

Record to External USB-C Media Disks

If recording to other types of media is required, the USB-C expansion port lets you plug in an external flash disk for recording. USB-C flash disks have unlimited capacity because they can be physically larger than an SD card or SSD. Plus, it’s even possible to record to a disk array you’ll use for editing, so you don’t need to waste time copying files before starting post production. Just move the disk over to a computer and instantly start editing! You can even add a Blackmagic MultiDock 10G that has 4 separate SSD media slots, so you can add compatibility with SSD media to the HyperDeck Studio Mini and Plus models. There are also menus for managing external disks on the built in LCD.

Popular ProRes, DNx, H.264 and H.265 Files!

HyperDeck supports the most popular codecs in use today! All models include DNx and ProRes file formats. However all models also include H.264 in quality levels up to full 10 bit 4:2:2 when recording in NTSC, PAL, 720p, 1080p and true 1080i interlaced formats. While the 4K model adds H.265 when recording in Ultra HD. That means you get tight 60:1 to 285:1 compression ratios for very small files at full broadcast quality. Plus you can choose uncompressed PCM audio, or even AAC audio when uploading files to YouTube. All models support both ExFAT and HFS+ disk formats and long duration single file recordings. The Plus and Pro models even support ProRes 4444 allowing fill and key playback!

Advanced Broadcast Connections!

Depending on the model HyperDeck Studio features a wide range of video and audio connections such as 3G-SDI, 6G-SDI or 12G-SDI. All models include HDMI for connecting to televisions and projectors. There’s even a dedicated SDI monitoring output on the Pro and Plus models with on screen status. The Pro and Plus models include two SDI outputs so you can play ProRes 4444 files, allowing simultaneous fill and key output for keying in live production switchers. The internal timecode and reference generator connections can be looped to sync multiple units for ISO recording! The 4K model has 10G Ethernet for extremely fast network file copying! All models even include AC and locking DC power!

Choose 3G‑SDI, 6G‑SDI or 12G‑SDI Models!

With multi-rate SDI, you get support for the most popular video standards. The SDI and HDMI connections will automatically switch video standards, so handle SD, HD and Ultra HD formats depending on the model. SD formats include NTSC and PAL. 720p HD standards include 720p50 and 720p59.94p. 1080i HD interlaced formats include 1080i50 and 1080i59.94. 1080p HD formats include 1080p23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p. HyperDeck can even support 1080 PsF formats! On the 4K model, Ultra HD formats up to 2160p60 are supported. Plus the 4K model supports 2K and 4K DCI rates up to 30p. HyperDeck Studio also supports level A and level B when running HD video at 3G-SDI rates.

Fill and Key Outputs for Broadcast Animations

The HyperDeck Studio Plus and Pro models can play ProRes 4444 HD files to the 2 separate SDI fill and key outputs. That means you can use HyperDeck Studio as a graphics clip player for broadcast animation because the ProRes 4444 file’s alpha channel will be automatically converted to the key SDI output for realtime keying in a live production switcher! Plus the HyperDeck Studio 4K Pro model adds fill and key playback in Ultra HD! Imagine running animated lower third titles and stingers with key channel outputs for incredibly clean multi layered titles. Plus, switchers such as Blackmagic Design ATEM models connect to HyperDeck Studio via Ethernet to trigger playback synced to transitions!

USB Webcam Output for Video Software

For compatibility with a wide range of computer software, HyperDeck Studio features webcam support using the USB connection. If you’re not recording to an external USB disk, you can plug the HyperDeck USB connection directly into a computer to get live video into any video software. The computer is tricked into thinking the HyperDeck is a common webcam, but it’s really a broadcast quality video source! That guarantees full compatibility with any video software and in full resolution 1080 HD quality. HyperDeck Studio’s USB webcam feature works with any video software including Zoom, Microsoft Teams and Skype, or get live streaming with Open Broadcaster, XSplit Broadcaster and more!

Advanced HDR Support and Monitoring 3D LUTs

You’ll be ready for the latest feature film workflows with support for advanced HDR standards. All HDR status information is embedded into the SDI connections so downstream equipment can detect when HDR files are played. When recording, the SDI and HDMI inputs will also automatically detect HDR video standards and then tag the files with the correct HDR information. Static metadata PQ and HLG formats are handled according to the ST2084 standard. Plus the front panel LCD has a wider color gamut for both Rec. 2020 and Rec. 709 colorspaces. HyperDeck Studio Plus and Pro models even allow you to load a 3D LUT into the monitoring output to add looks or to convert film to video gamma.

Includes Professional Multi Channel SDI Audio

HyperDeck Studio includes professional multi channel SDI audio for recording up to 16 channels. When recording from the SDI input, you can select in the menu to record 2, 4, 8 or 16 channels of audio in real time. There’s extra space on the SDI monitoring status overlay, which allows the audio meter display to show the number of channels you have enabled all at the same time, and the audio meters will show 2, 4, 8 or 16 channels simultaneously. The audio meters are designed to use the correct ballistics, and you can change between different VU and PPM meter displays in the LCD menu. HyperDeck Studio is more than just a video recorder, as it also has fantastic sound!

Incredibly Fast Network File Transfers

All HyperDeck models allow media files to be uploaded remotely, using simple FTP client software. With 10G Ethernet built into the HyperDeck Studio 4K Pro model, file transfers are so fast, they are faster than the SD card or SSD media disks! For remote deck control, all models use an easy to learn text based protocol, so you can use a simple terminal app like Telnet to test control commands. Simply log into the HyperDeck and then type “play” or “record” and it will execute the command. It’s that simple! If you combine the control protocol and file transfers with a HyperDeck connected to a large USB-C disk array, you get a fantastic broadcast server for ingest, media management and play out.

Traditional RS-422 Broadcast Deck Control

The most popular control connection used on broadcast decks since the early 1980s is the RS-422 protocol. Originally developed by Sony, RS-422 is used on almost all broadcast gear. HyperDeck Studio features wide protocol support so you can connect it direct to broadcast systems. It also supports extra commands for the Advanced Media Protocol for managing disk recorders. When designing RS-422 control solutions, you’ll know you’re connected to a HyperDeck Studio when you see the ID 0xF0E0 in 30/60p, 0xF1E0 in 25/50p or 0xF2E0 in 24p. The full set of support remote commands are included in the instruction manual and you can download this from the support page of our web site.

Built in Timecode and Sync Generators

With a timecode and sync generator built into all models, you can stack multiple units for digital signage or multi channel recording. Each HyperDeck has dedicated outputs for reference and timecode, direct from the internal sync and timecode generators. The generators “free run” unless reference or timecode is connected to the inputs, and then generators will automatically lock. This means you can loop from HyperDeck to HyperDeck to create perfectly timed array or recorders.

Includes the Power of Blackmagic OS

The innovative Blackmagic OS has been designed for high performance film and broadcast products and it manages all functions on HyperDeck Studio. Only Blackmagic OS provides instant power on, while including powerful features such as LCD with video, timecode and audio metering, monitoring with overlays, menus, fast networking, multi-disk media management, 3D LUTs plus localization. The on screen LCD menus include settings to customize your HyperDeck Studio, plus the menus now support both light and dark mode! Blackmagic OS provides world leading network performance and HyperDeck Studio 4K Pro can sustain data transfers at a massive 1.2 gigabytes per second on its 10G Ethernet connection!

Localized for 13 Popular Languages

HyperDeck Studio supports multiple languages so you don’t need to learn a new language just to use it! You get support for English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish and Ukrainian languages. When initially powered on for the first time, HyperDeck Studio will display a menu for selecting a language, plus you can always use the LCD menu to change the language at any time in the future. Once a language is selected, the LCD menus will change, plus the overlays on the SDI monitoring output will also change to the selected language. All this means HyperDeck Studio is perfect for doing work anywhere in the world!

Use All Video Software and Streaming Sites

HyperDeck Studio records files that are compatible with virtually all post production software. Plus if you record in H.264, you can upload files from HyperDeck Studio direct to streaming services such as YouTube, Facebook, Vimeo, Twitter and more! You can use popular editing software such as DaVinci Resolve, Apple Final Cut Pro, Adobe Premiere Pro or Avid Media Composer, because HyperDeck uses the same file formats used in post production. Even VFX software such as Fusion and Adobe After Effects work with the files! Because HyperDeck records to disks formatted on computers, you can simply mount the disk on any computer and start editing without needing to transcode or convert the files.

Built in Redundancy Keeps You On Air!

Serious broadcasters need redundancy because it increases reliability. HyperDeck Studio includes redundant features to help ensure you stay on air. With dual media slots on all models, and the Pro models having 4 media slots, you can stay on air, even if one of the slots becomes damaged. Plus with the HyperDeck Studio HD Mini model you get 3 totally independent recorders in a single rack unit, while the HyperDeck Studio HD Plus model allows 2 independent recorders in a single rack unit. All HyperDeck models include both AC and a locking DC power connection, so you use the DC connection with an external battery pack for redundant power.

Designed for Both Portable or Rack Mount Use!

When you need a portable broadcast solution, the HyperDeck Studio HD Mini model includes most features miniaturized into an elegant 5 inch wide compact design that’s only one third of a rack unit wide. That means you can fit 3 recorders in a single rack unit! Just use the optional Teranex Mini Rack Shelf and you can mount the 3 units side by side, then bolt it into a standard equipment rack. Or you can combine HyperDeck Studio Mini with other modules, such as a Teranex Mini Analog to SDI 12G to convert the input from analog to SDI, all in the same rack which is perfect for archive work. HyperDeck Studio HD Mini looks great when it’s not rack mounted and simply used by itself on a desktop

Compatible with Switchers, Disk Docks and Cameras!

There’s a wide range of Blackmagic Design products you can use with HyperDeck including switchers, cameras and streaming solutions! As the Mini and Plus models don’t include SSD slots, you can add a Blackmagic MultiDock 10G to use regular SSDs, allowing compatibility with media from other HyperDeck models. HyperDeck Studio will manage all the disks for you and automatically record to disks in the MultiDock. You can even use the MultiDock with the HyperDeck Studio Pro models just to add extra SSDs for longer recording times! HyperDeck Studio is also a perfect mastering recorder when used with ATEM switchers, a clip player with fill and key, or looped on switcher inputs for ISO recording.

Broadcast Transport Controls

The transport control buttons on the front panel include standard functions for broadcast decks including record, play, fast forward, rewind, previous clip, next clip, stop and input select. These buttons have been custom designed to match traditional broadcast decks so they feel familiar to use. Plus the Blackmagic Design engineers have designed the buttons to be smooth to the touch, firm when pressed and incredibly reliable so they last for years of heavy industrial style use.

Incredible Search Dial

The search dial on the HyperDeck Studio Pro models is much more than a simple encoder, as it’s a custom design that looks elegant and it’s incredibly nice to use. The knob mechanism is a solid machined metal design so it has inertia when it’s spun, which allows the jog and scroll functions to have an old fashioned analog feel. Even the outside of the search dial has a soft rubber coating with a distinctive pattern that was researched by our engineers to create the best feel when touched. An electronic clutch is built into the search dial and used to stop the dial to show the limits of shuttle, or the media in jog and scroll. The clutch even works when scrolling to the end of menus!

Better Cooling

The new HyperDeck Studio cooling system quietly maintains an optimum operating temperature even at high video frame rates for hours of recording. Plus the cooling system uses multiple fans so each fan runs slower meaning there’s less noise and less wear on the fans, ensuring a longer life. Having multiple fans adds redundancy, so if a fan should fail, the other fan will continue to operate. Each HyperDeck Studio model has a custom designed cooling duct that guides the air from one side of the unit, over the critical processing ICs and out the other side. This eliminates heat transmission to the lid, so multiple HyperDecks can be stacked in a rack.

Easy to Repair

HyperDeck recorders are designed for broadcast professionals who need to keep them operating for years. The media slots use plug in PCB assemblies so they can be replaced. If a media slot becomes worn from heavy use, or damaged due to rough use, a new SD card or SSD interface PCB can be installed. This means HyperDeck Studio is designed to be able to replace the key mechanical wear part in the design so you can keep it running reliably for many years. Any qualified service technician will find it extremely easy to remove the HyperDeck lid and plug in a new media interface card!

Redundant Power

The miniaturised design of HyperDeck Studio Mini includes a built in power supply so you don’t have to carry around an external power brick! Simply plug it into an AC mains outlet and start recording and playing back video. With an auto switching international power supply that works with 100-240V AC, you can use it anywhere in the world! All models of HyperDeck Studio include both AC and DC power connections. The HyperDeck Studio HD Mini model has a 12V DC power input with locking connector and all other models have a broadcast style 4 pin XLR 12V DC power connection. The HyperDeck Studio 4K Pro has two separate AC power supplies for total redundancy.

Rack Mountable

The HyperDeck Studio HD Mini model is only one third of a rack unit wide and the HyperDeck Studio HD Plus model is one half of a rack unit wide, so this means you can fit multiple channels in a single rack unit. The Teranex Mini Rack Shelf lets you mount these HyperDeck models into a whole rack assembly before bolting it into an equipment rack. Based on their size, you get 3 channels of recording per rack unit using HyperDeck Studio HD Mini or 2 channels per rack unit with the HyperDeck Studio HD Plus. That’s better for redundancy because each unit has its own power supply, LCD and controls. You can even combine gear such as analog converters or an ATEM Television Studio HD switcher!

WORKFLOW

The perfect solution for broadcast andlive production!

HyperDeck Studio has so many features, it’s perfect for any task in broadcast and live production! You can even use it to build large digital signs! One of the most common uses is for recording from live production switchers to create broadcast masters, or for ISO recording cameras for later editing. HyperDeck Studio can even be used as a clip player for animated broadcast graphics. There are models starting from the incredibly tiny HyperDeck Studio HD Mini, up to the full sized HyperDeck Studio Pro that features a larger control panel, both SSD and SD Card media and an elegant machined metal search dial with electronic clutch. All this means there is a model perfect for your needs.

Master Recorder for Live Production

HyperDeck Studio is ideal for recording broadcast masters for live production work such as concerts, sport, business presentations, education seminars and more! The Plus and Pro models have both SDI and HDMI inputs so you can connect any live production switcher, or even an ATEM Mini. An ATEM Television Studio HD and a HyperDeck Studio HD Mini will even both fit in a single rack unit! When recording masters, you can select H.264 video and AAC audio, for long record times, small files and full compatibility with YouTube. That’s also perfect for archiving as files take up very little storage space. Plus H.264 files can be directly played on smart TVs, phones and tablets!

ISO Recording for Editing

HyperDeck Studio is ideal for recording multiple camera feeds on live production. Plus the compact size means you can fit three HyperDeck Studio HD Minis or two HyperDeck Studio HD Plus models in a single rack unit, so you get dramatically reduced weight and size for a multi-camera ISO recording rig. You can even loop the SDI out from each HyperDeck to send each camera feed to a MultiView so you can see all cameras on a single screen! All HyperDeck Studio models have built in reference and timecode generators, so you can simply loop from the first one to other HyperDecks in a stack and they will all be in perfect sync with matching timecode. That’s perfect for later multi-cam editing!

Digital Signage

Large digital signs are incredibly popular and can be found on buildings worldwide. HyperDeck Studio is a great solution for video walls because you can create an array of synchronised HyperDeck players that can be used to drive large LED screens that use multiple video resolution panels. All models have both SDI and HDMI video output so you can create large displays with professional LED panels, or even multiple large screen televisions! With fast Ethernet and support for H.264 and H.265 files, you can remote manage and upload content to signs even if the sign is hard to access! Plus with built in sync generators, you can loop sync to multiple HyperDecks to build displays of unlimited size!

Archive and Monetise Classic TV Shows!

There are millions of hours of news, sports and TV programs in videotape archives around the world! As videotape deteriorates over time, it needs to be digitised before it’s lost forever. All SD and HD standards are supported and you can record direct from old decks such as Digital Betacam. Or you can record from analog decks such as Betacam SP, 1″, U‑matic and VHS by using an analog to SDI converter. That means a whole vault of videotape can be shrunk down and archived onto a single hard disk when using modern H.264 files. Plus H.264 files are perfect for streaming services as they can be directly uploaded. That means you can give new life and monetise your vintage TV shows!

Animated Broadcast Graphics

Animated graphics bring a whole new excitement to live production! HyperDeck Studio is a great solution for playing titles, edited packages, action replays, advertisements and more. HyperDeck Studio Plus and Pro models can play ProRes 4444 files that include an alpha channel and the deck will convert in real time to separate SDI fill and key video outputs for layering in a live production switcher. You can create an unlimited library of animated titles, lower thirds and bugs that will be perfectly keyed in the switcher. Plus ATEM switchers can control the HyperDecks to trigger transitions or macros. This means HyperDeck Studio will always give you true broadcast quality results.

Weddings, Funerals and Church Services

Now you can add professional broadcast quality to weddings, funerals and other church services so they can be uploaded or played back later. You can use multiple cameras with an ATEM live production switcher and then record the program with HyperDeck Studio. One of the most popular uses is to playback previously recorded services to HDMI screens or large projectors so congregations who were unable to attend the church during busy times won’t miss out! Plus the H.264 record files are so small, you can create a massive archive of content that’s accessible for years into the future. Imagine uploading years of church services online!

Live Non-Stop Broadcast Archive

Television networks need to constantly archive their broadcast so they can ensure advertisers or government agencies get an accurate record of what has been put to air. All HyperDeck Studio models feature dual media slots for non-stop continuous recording. That means you can change full media cards without interrupting the recording. Recording automatically spills to the next free card, so you can record forever! A 1TB SD card can record in H.264 for up to 157 hours in 1080p59.94, that’s nearly 1 week of broadcasting on a single card! The status lights on the slot will show you the active card, and flash when a card starts to fill. Plus the LCD includes additional record status information.

Customisable and Immersive Video Displays

Museums, galleries, shopping malls and even office entrances use video screens to create excitement and increase visitor engagement! You can create an immersive, multi-screen experience by using HyperDeck Studio as a video server for content. The HyperDeck Ethernet protocol lets you integrate with a custom app to trigger playback from a HyperDeck using a simple touch screen! By daisy chaining multiple decks together, you can create massive LED video walls, or wrap the screens around the viewer for a totally immersive experience. With HyperDeck Studio 4K Pro, you can even use the quality of Ultra HD for mind blowing detail on each display!

Compact Camera Field Recorder

Now it’s easy to head into the field with HyperDeck Studio as a secondary camera recorder. You can record smaller ProRes, DNx or H.264 files while the camera is recording larger RAW files. Because HyperDeck can trigger recording via SDI or timecode run, both the camera and the HyperDeck can be triggered to record by the camera operator at the push of a button. Broadcast style transport buttons and the search dial makes reviewing shots extremely fast. You can even playback to an SDI reference monitor or HDMI screen so crews can critically review shots and keep production moving. The Plus and Pro models include an SDI monitor out, so you can see an overlay of recording metadata.
