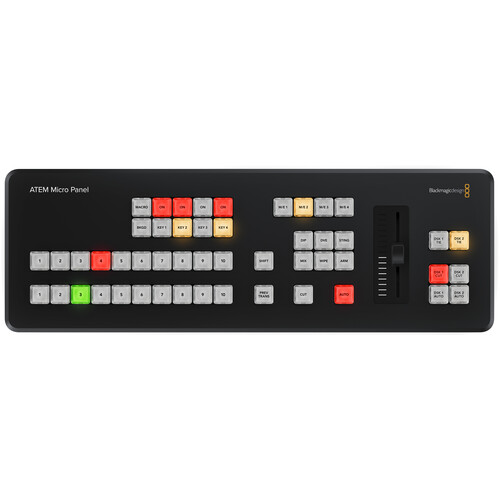

Blackmagic ATEM Micro Panel

Overview
The ATEM Micro Panel is a budget-friendly solution for adding panel control to ATEM Software Control. It offers the same high-quality buttons as ATEM Advanced Panels, giving users a true broadcast quality experience. The layout is familiar, with dedicated buttons for program and preview, and the shift buttons allow for easy access to up to 20 sources. Additionally, there are 4 upstream and 2 downstream key buttons, as well as a macro button. The ATEM Micro Panel also boasts 4 M/E buttons, making it compatible with even the largest switchers. Its manual transition fader allows for smooth control and its low profile design makes it highly portable. It can be connected to a computer via USB-C or Bluetooth, and its large internal battery ensures hours of wireless use.

The ATEM Micro Panel is an excellent hardware panel for physical switching while utilizing ATEM Software Control. Its professional design, backlit buttons, and compact size make it a top choice for users on the go. With two rows of buttons for program and preview, as well as dedicated buttons for keyers, transitions, and macros, the ATEM Micro Panel can handle even the largest switchers. Its USB-C and Bluetooth connectivity options, along with its long-lasting internal battery, make it a truly portable panel. Whether in the studio or on location, the ATEM Micro Panel is the perfect solution for those in need of a compact panel for ATEM Software Control.

Included in box
1x ATEM Micro Panel
1x Welcome wallet with QR code for software download
1 Year Limited Manufacturer’s Warranty

About the Blackmagic ATEM Micro Panel
The ATEM Micro Panel is a low cost solution for adding panel control to ATEM Software control. Featuring the same high end buttons as ATEM Advanced Panels you get a true broadcast quality feel. It also has a familiar layout with buttons for program and preview. You can use the shift buttons to access up to 20 sources. There are 4 upstream and 2 downstream key buttons, plus a macro button. It even has 4 M/E buttons so you can control a massive 4 M/E switcher! There’s a fader for smooth manual transition control, which also means it’s low profile and very portable. With connection via USB-C or Bluetooth and a large internal battery, ATEM Micro Panel is perfect when you need a portable panel!

The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!

Connections
Computer Interface USB Type‑C.
Bluetooth Bluetooth 5.1 LE
Number of Mix Effects Rows 1
Direct Cross Points 10
Shifted Cross Points 20
Crosspoint Button Type Tri-Color LED
Preview Transition 1
Switching Type Buttons CUT and AUTO
Transition Type Buttons DIP, DVE, STINGER, MIX, WIPE.
M/E Select Buttons 4
Upstream Key Buttons 4 with ON/OFF
Downstream Key Buttons 2 with ON/OFF
Transition Slider 1
Software
Software Applications ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.
Operating Systems Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
Power Supply Internal battery with power switch.
USB-C port for external power supply and battery charging.
Power Usage 3 W max
Environmental Specifications
Operating Temperature 5° to 40° C (41° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non‑condensing
Warranty 12 Month Limited Manufacturer’s Warranty.
