Blackmagic ATEM Camera Control Panel

Overview
The ATEM Camera Control Panel is a versatile tool that allows one person to control up to four cameras. It features a top section for saving and recalling scene presets, a center section for adjusting RGB levels, and a bottom section for controlling lens and iris functions. This panel connects directly to ATEM switchers via Ethernet, making it easy to incorporate into a live production workflow. With traditional CCU controls, the ATEM Camera Control Panel allows for fast and precise adjustments, freeing up camera operators to focus on the creative aspects of live production.

The ATEM Camera Control Panel is designed to be compact and portable, with a familiar and logical layout that is suitable for both experienced and new operators. It works seamlessly with all ATEM switcher models, making it a valuable tool for any live multi-camera program. With its intuitive controls and easy setup, the ATEM Camera Control Panel is the perfect solution for ensuring consistent and high-quality video from every angle.

Included in box
1x Blackmagic ATEM Camera Control Panel

About the Blackmagic ATEM Camera Control Panel

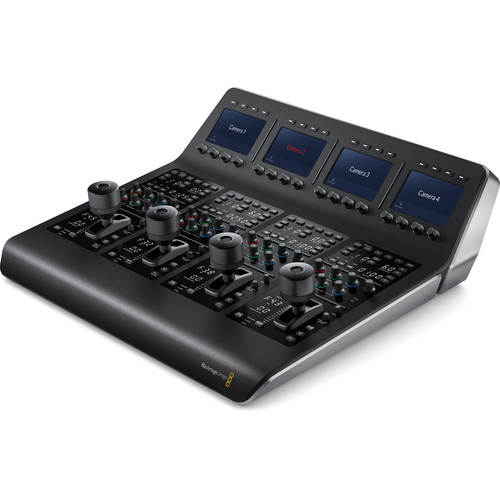

The ATEM Camera Control Panel is a compact remote camera control unit designed to control up to four different URSA Broadcast, URSA Mini, Blackmagic Studio or Blackmagic Micro Studio cameras. The control panel features traditional broadcast style controls and adjustments so a single person can monitor and adjust a wide range of technical parameters such as black levels, gain, colour balance, shutter speed and more.

This leaves your camera operators free to focus on the more creative aspects of live production such as framing and composition. Unlike traditional CCU controllers, which have to be installed into a desk, the ATEM Camera Control Panel has been designed to be portable so it can simply be placed on any desktop or bolted down so it can be mounted in a slide out rack shelf. The controls are arranged in a familiar and logical layout, making it perfect for both experienced and new operators. Plus, it works with all ATEM switcher models!

Connections
Ethernet 2 x 10/100/1000 BaseT with loop output for additional control panels or computers.
Software Updates 1 x USB-C for firmware updates.
Product Specifics
LCD Menu Displays 4
Camera Number Display Green off air, orange preview, red on air.
Setup White and black balance setup.
3 Axis Joystick 4
Preview Button 4
Iris Control Auto Iris On, Coarse control and Focus control.
Panel Active Protects settings.
Software
Software Applications ATEM Software Control Panel.
Power Requirements
Input Voltage 1 x Internal 110 – 240V AC.
Redundant Power Yes
Physical Specifications 389x430mm
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity Up to 95%

Control Four Cameras

One person can control 4 cameras!

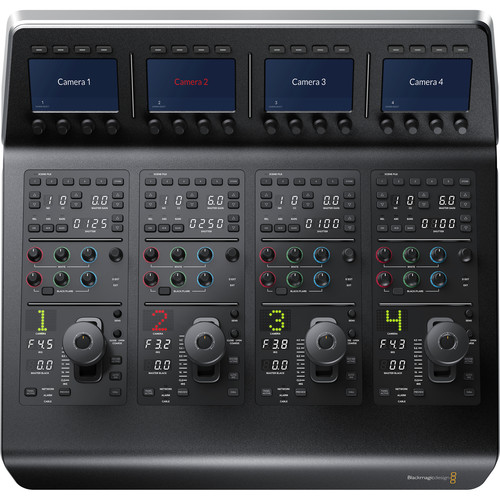

When working on live multi camera programs, it’s important to make sure all of the cameras are properly balanced and set up correctly so that you get consistent video from every angle. The ATEM Camera Control Panel features 4 camera controllers in one panel. Each camera controller includes a large LCD screen with soft buttons and knobs at the top of the panel, and a full set of professional controls below, on the main body of the panel.

Scene and Camera Controls

The top section lets you save and recall scene presets so you can quickly adjust cameras based on changes in the scene such as lighting. This section also includes controls for adjusting master gain, white balancing the camera and changing the camera’s shutter speed.

Gain and Pedestal Controls

The center section features independent RGB controls for gain and pedestal, or white and black. This allows you to adjust the individual red, green and blue levels in your blacks and whites to compensate for unwanted color.

Lens and Iris Controls

The bottom section features an LED camera number that indicates preview and on air status, along with a high quality professional joystick that’s used to precisely adjust the iris and master black. It also features a call button for talkback with the operator, along with a panel lock button and indicators for the network, power and cable connection to the camera.

Live Production Workflow

Works seamlessly with ATEM switchers!

The ATEM Camera Control Panel connects directly to your ATEM live production switcher or ATEM hardware control panel via Ethernet. In many setups, you may be using multiple ATEM products such as an ATEM 4 M/E Broadcast Studio 4K switcher with an ATEM 1 M/E Advanced Panel and the ATEM Camera Control Panel. Ethernet can simply be looped from one ATEM device to another.

Fast and Easy Control

With traditional CCU controls, you can work much faster

The ATEM Camera Control is incredibly fast to use as it features traditional broadcast CCU controls so you get the benefit of years of broadcast experience. You can use the knob on the LCD to set the camera number, which turns red when a camera is on the air. The main joystick control can be moved vertically to adjust the camera iris while the knob can then be rotated to change the master black level. Pressing down on the knob will let you monitor the camera you’re currently controlling via the aux output of the switcher. Simply push the knobs to rapidly switch between cameras to ensure all your cameras match color. The ATEM Camera Control Panel is fast to set up so you can instantly start controlling the cameras that are connected to your switcher!
