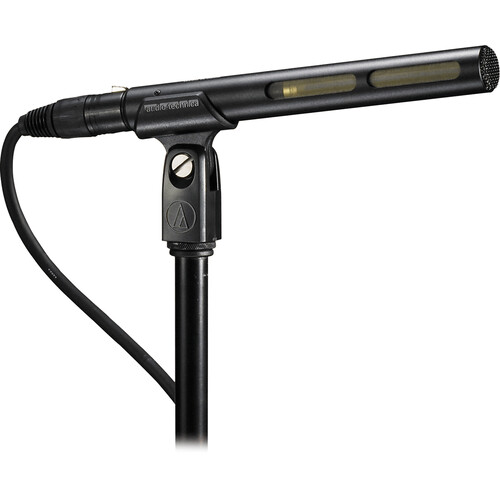

Audio Technica AT875R Mic

Overview
The Audio-Technica AT875R is a highly versatile and compact shotgun microphone, perfect for use with compact digital cameras and for capturing audio in broadcast settings. Its small size and lightweight design make it ideal for mobile applications and corporate reports. With a narrow acceptance angle and excellent off-axis rejection, this microphone is ideal for long-distance sound pickup and provides a balanced frequency response with minimal camera and handling noise.

Weighing only 80g and measuring 175mm in length, the AT875R is one of the shortest shotgun microphones on the market, making it easy to mount on a compact camera or digital video camera equipped with an XLR input. It operates on phantom power and comes with a foam windscreen, stand clamp, two O-rings, and a soft carry case. Its line + gradient design ensures superior sound quality and rejection of unwanted noise from the sides and rear of the microphone, making it a top choice for professional audio capture.

Summary
Connectivity: XLR-3M
Direction: Line & Gradient
Microphone Type: Super-Cardoid (Shotgun)
Included in box
AT875R Microphone
AT8405a Stand Clamp
5/8″-27 to 3/8″-16 Threaded Adapter
Windscreen

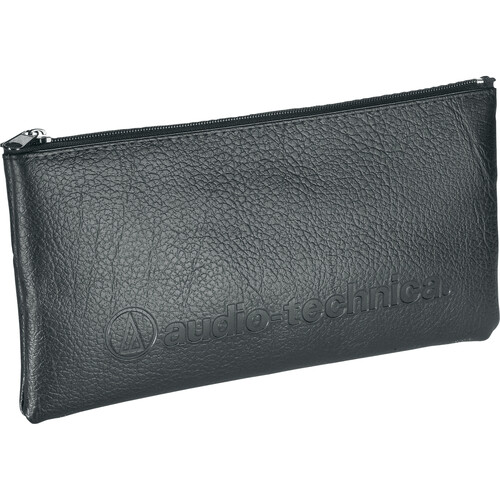

Soft Protective Pouch

About the Audio Technica AT875R Mic
Audio-Technica’s AT875R is designed for video production and broadcast (ENG/EFP) audio acquisition. Audio-Technica’s shortest shotgun microphone, it mounts conveniently on a DV camcorder without adding noticeable heft, and is ideal for use with compact digital cameras. This high-performance microphone offers a narrow acceptance angle of line + gradient design. It also features smooth, natural-sounding on-axis audio quality and excellent off-axis rejection of sound arriving from the sides and rear of mic.

Small but robust

The AT875R weighs only 80g, and at a length of 175mm, it is one of the shortest shotgun microphones on the market with professional sound quality. Made from metal, its inherent robustness allows it to follow you on the ground.

Ideal for use on booms

As boom operators are well aware, the weight of a microphone is paramount. The AT875R is the most affordable universal solution. Equipped with its own clamp with screw thread adaptor, it intalls very quickly on a boom or on a microphone stand, and at 80g you would almost forget it was there!

Excellent off-axis rejection

The very thin shape provides a narrow acceptance angle of 60°, while maintaining excellent rejection of off-axis noise. The AT875R guarantees you precise audio capture with great intelligibility.

Very short shotgun mic

The AT875R is one of the shortest shotgun mics on the market. Its small size and quality of its audio capture are superior to competitor products in the range.

60° sound capture angle

Its very narrow acceptance angle (60°) is desirable for long-distance sound pickup, whilst maintaining excellent rejection of off-axis noise.

Line + gradient

The AT875R combines a directional capsule (gradient) and an interference tube to remove unwanted sound from the rear.

For compatibility please click here

Element Fixed- charge back plate, permanently polarized condenser
Polar pattern Line + gradient
Frequency response 90-20,000 Hz
Open circuit sensitivity –30 dB (31.6 mV) re 1V at 1 Pa
Impedance 100 ohms
Maximum input sound level 127 dB SPL, 1 kHz at 1% T.H.D.
Dynamic range (typical) 107 dB, 1 kHz at Max SPL
Signal-to-noise ratio 74 dB, 1 kHz at 1 Pa
Phantom power requirements 11-52V DC, 2 mA typical
Weight 80 g (2.8 oz)
Dimensions 175.0 mm (6.89″) long, 21.0 mm (0.83″) diameter
Output connector Integral 3-pin XLRM-type
Accessories furnished AT8405a stand clamp for 5/8″-27 threaded stands; 5/8″-27 to 3/8″-16 threaded adapter; windscreen; soft protective pouch
Audio-Technica case style SG4

Extremely short in length (under 7″/175mm) ideal for use with compact digital cameras and broadcast (ENG/EFP) audio acquisition
Provides the narrow acceptance angle desirable for long-distance sound pickup
Ideal for mobile applications and corporate reports
Very light, it is easily mounted on a compact camera or digital video camera equipped with an XLR input with phantom power or when connected to a microphone preamp or recorder that can supply the microphone
Excellent sound rejection from the sides and rear of mic
Very balanced frequency response with a slight bump at 5 kHz
Tailored response minimizes camera and handling noise
Operates on phantom power only
Comes with a foam windscreen, a stand clamp, two O-rings and a soft carry case
