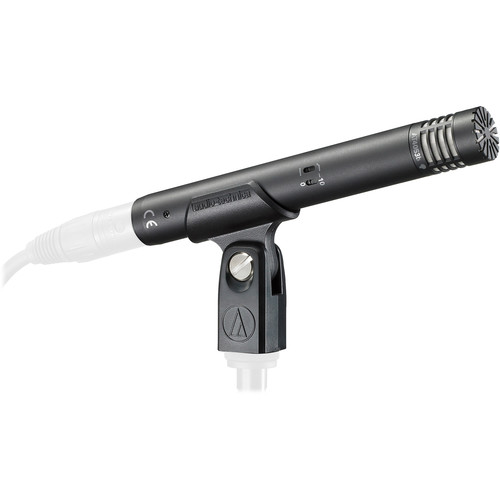

Audio Technica AT4053B Microphone

Overview
Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement, the Audio-Technica AT4053b is a versatile studio microphone that guarantees exceptional performance. Its hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source. This makes it perfect for capturing clear and focused audio in any professional setting.

The AT4053b also features direct-coupled, balanced output which results in a clean signal even under high-output conditions. Its transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients, ensuring top-notch sound quality. Additionally, it comes with a switchable 80 Hz hi-pass filter and 10 dB pad, making it suitable for a wide range of miking applications. With a rugged turned-brass microphone housing and state-of-the-art design and manufacturing techniques, the AT4053b is built to last and meets Audio-Technica’s stringent consistency and reliability standards.

Summary
Connectivity: XLR-3M
Direction: Hyper Cardoid
Microphone Type: Cardoid
Included in box
1x AT4053B (AT40-53B) Hypercardioid condenser pencil microphone
1x AT8405a stand clamp for 5/8″-27 threaded stands
1x Windscreen
1x Protective carrying case

About the Audio Technica AT4053B Microphone
This versatile studio performer may be used with confidence in a wide variety of professional miking applications. Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the AT4053b is totally free of the distortion associated with conventional transformer-coupled outputs. And its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments.

Element Externally polarised (DC bias) capacitor
Polar Pattern Hypercardioid
Frequency Response 20 – 20.000 Hz
Open Circuit Sensitivity -34 dB (19.9 mV) re 1V at 1 Pa
Impedance 50 ohms
Maximum Input Sound Level 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
Low Frequency Roll Off 80 Hz, 18 dB/octave
Switches Flat, roll-off; 10 dB pad (nominal)
Dynamic Range 129 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 78 dB, 1 kHz at 1 Pa
Phantom Power Requirements 48V DC, 4.8 mA typical
Weight 127g
Dimensions 155.0 mm (6.10″) long, 21.0 mm (0.83″) maximum body diameter
Output Connector Integral 3-pin XLRM-type

Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement
Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Direct-coupled, balanced output results in a clean signal even under high-output conditions
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
Switchable 80 Hz hi-pass filter and 10 dB pad
Rugged turned-brass microphone housing for enduring dependability
State-of-the-art design and manufacturing techniques ensure compliance with Audio-Technica’s stringent consistency and reliability standards
