Atomos Zato Connect

OVERVIEW

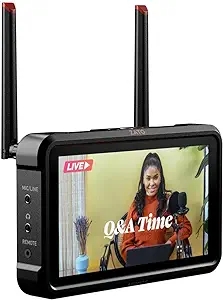

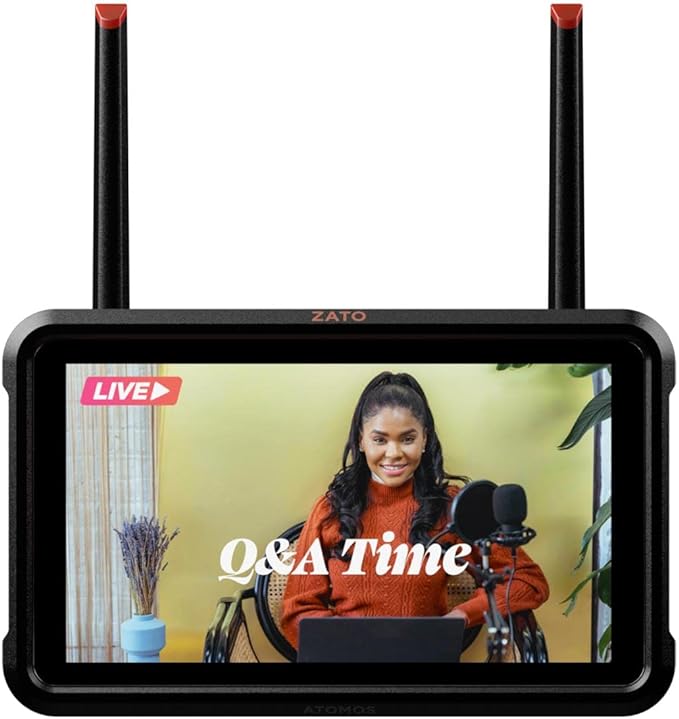

The ZATO CONNECT is a 5-inch FullHD monitor that serves as a gateway to ATOMOS Cloud Studio. It allows users to livestream directly to popular social media platforms such as Facebook Live, Twitch, and YouTube, as well as transform HDMI and mirrorless cameras into plug-and-play UVC webcams for video conferencing. With its compact size and various connectivity options, including Wi-Fi, Ethernet, and battery or USB power, the ZATO CONNECT is a versatile solution for livestreaming and video production.

Equipped with a 5-inch SuperAtom display, the ZATO CONNECT offers great visibility even in bright locations. It also features a comprehensive set of input and output ports for HDMI and USB UVC sources, as well as an audio mixer for adjusting and combining audio signals. The device runs on AtomOS Lite software, which provides an intuitive and familiar experience for both new and existing customers. With its tools for overlay effects, image zoom, and frame guides, the ZATO CONNECT is an essential toolkit for creating high-quality video content for livestreams and video conferences.

SUMMARY
Screen Size: 5.2inch
Resolution: 1920 x 1080
Inputs:
1 x HDMI 1.4 (up to 1080p60)
Webcam up to 1080p30
Outputs:
1 x HDMI 1.4 (up to 1080p60)
Webcam up to 1080p30
NITs: 1000
Recording: Yes
INCLUDED IN BOX
1x ZATO CONNECT
2x Wi-Fi Antennas with black caps
5x Antenna coloured caps: White/Red/Yellow/ Black/Green
2x Antenna Top Caps
2x Antenna Mount Cover
1x USB-C to USB-C Cable
1x Antenna Storage Pouch
1x Quick Start Guide
1x Screen Cloth

About The Atomos Zato Connect
Firmware AtomOS Lite 10.03.01 available for download now, For more information please click here

Now everyone can monitor, stream and engage with social platforms and video conferencing.

ZATO CONNECT has been designed to act as a compact, easy-to-use gateway to ATOMOS Cloud Studio. The device supports nearly all HDMI and USB UVC sources to livestream to Facebook Live, Twitch, YouTube, and other social sites, or can be used to create a webcam source for Microsoft Teams, Slack, Zoom, and other conferencing software.

The implementation of the AtomOS Lite software provides an intuitive and easy-to-use experience for new customers. The software includes all the essential tools, so it feels familiar for existing customers too. With a compact form factor, the SuperAtom IPS 5-inch (1000nit) display, Wi-Fi 5, USB-C, and Ethernet (via USB-C adapter) connectivity, as well as, NP-F battery or USB-C PD power options, ZATO CONNECT is an ideal companion for livestreaming in the field, the studio, or wherever else it travels.

STREAM FROM ANYWHERE

Livestreaming and high-quality video conferencing is made easy and accessible with ZATO CONNECT. With support for HDMI and USB UVC cameras or video sources, the device is equipped with Wi-Fi 5, Gigabit Ethernet (via USB-C), and the ability to join cellular hotspots, everyone can stream to Facebook Live, Twitch, and YouTube, or create high-quality video for Microsoft Teams, Slack, and Zoom from anywhere.

STREAMING SIMPLIFIED

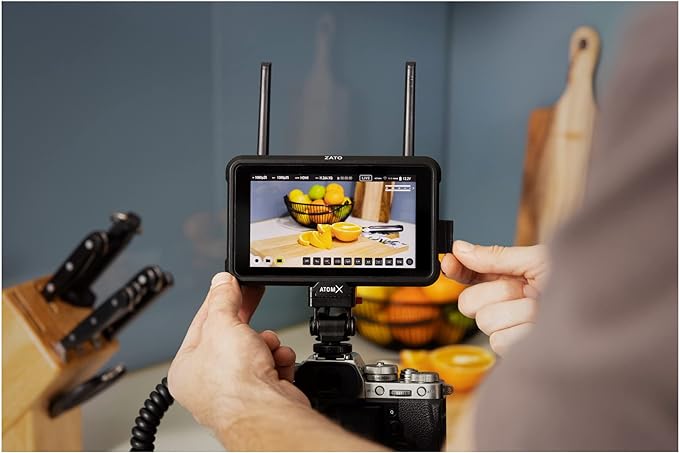

Anyone can setup a livestream (using ATOMOS Cloud Studio) and create high-value video content with the easy-to-use ZATO CONNECT. The 5-inch touchscreen display can be used to switch between sources and monitor the outgoing program stream. The device is compact enough to mount on a DSLR or mirrorless camera rig. It’s equally at home next to a PC, Mac computer, or gaming console. Streaming has never been easier and ZATO CONNECT is the ideal, all-in-one solution.

COMPREHENSIVE I/O

While incredibly compact, the ZATO CONNECT lives up to its name. Featuring input and output ports for both HDMI and USB UVC, the device can transform the output from a wide array of video equipment into a livestream or webcam source. The 3.5mm audio jack can also be used to add microphone or line sources and the ZATO CONNECT can be used to mix them with embedded audio from HDMI or USB UVC.

GO LIVE OR AS LIVE!

Each livestream can be recorded as local H.264 backup to an SD card. With the ability to combine recorded sources with live content, it’s possible to take one of these recordings and stream the content “as live” with ZATO CONNECT. This opens lots of creative opportunities and adds value to any stream or video presentation.

GET YOUR AUDIO IN THE MIX

ZATO CONNECT includes an audio mixer, which can be used to adjust and combine audio signals from the 3.5mm analog input with the embedded audio from HDMI and USB UVC sources. Each channel can be adjusted independently and mixed down to a single stereo track for a livestream, recording, or video presentation.

AN ESSENTIAL TOOLKIT

Whether it’s configuring streams, switching between sources, recording, playback, mixing audio, or adding effects, AtomOS Lite on the ZATO CONNECT makes it all a breeze. The software features a number of key tools including overlay effects, image zoom, and frame guides that will help add value to every stream or video conference.

CREATE AN IDENTITY

Whether through a livestream or virtual meeting, video has become an everyday part of all our lives. Today businesses, influencers, entrepreneurs, houses of worship, and educators all use video to establish an identity or reinforce a brand. Compelling content can make a difference and help emphasize branding, core messages, or even empower sponsorship opportunities. Applying graphic overlays to streams or watermarking recorded content is easy with ZATO CONNECT.
Now everyone can monitor, stream and engage with social platforms and video conferencing.
ZATO CONNECT has been designed to act as a compact, easy-to-use gateway to ATOMOS Cloud Studio. The device supports nearly all HDMI and USB UVC sources to livestream to Facebook Live, Twitch, YouTube, and other social sites, or can be used to create a webcam source for Microsoft Teams, Slack, Zoom, and other conferencing software.

The implementation of the AtomOS Lite software provides an intuitive and easy-to-use experience for new customers. The software includes all the essential tools, so it feels familiar for existing customers too. With a compact form factor, the SuperAtom IPS 5-inch (1000nit) display, Wi-Fi 5, USB-C, and Ethernet (via USB-C adapter) connectivity, as well as, NP-F battery or USB-C PD power options, ZATO CONNECT is an ideal companion for livestreaming in the field, the studio, or wherever else it travels.

STREAM FROM ANYWHERE
Livestreaming and high-quality video conferencing is made easy and accessible with ZATO CONNECT. With support for HDMI and USB UVC cameras or video sources, the device is equipped with Wi-Fi 5, Gigabit Ethernet (via USB-C), and the ability to join cellular hotspots, everyone can stream to Facebook Live, Twitch, and YouTube, or create high-quality video for Microsoft Teams, Slack, and Zoom from anywhere.

STREAMING SIMPLIFIED
Anyone can setup a livestream (using ATOMOS Cloud Studio) and create high-value video content with the easy-to-use ZATO CONNECT. The 5-inch touchscreen display can be used to switch between sources and monitor the outgoing program stream. The device is compact enough to mount on a DSLR or mirrorless camera rig. It’s equally at home next to a PC, Mac computer, or gaming console. Streaming has never been easier and ZATO CONNECT is the ideal, all-in-one solution.

COMPREHENSIVE I/O
While incredibly compact, the ZATO CONNECT lives up to its name. Featuring input and output ports for both HDMI and USB UVC, the device can transform the output from a wide array of video equipment into a livestream or webcam source. The 3.5mm audio jack can also be used to add microphone or line sources and the ZATO CONNECT can be used to mix them with embedded audio from HDMI or USB UVC.

GO LIVE OR AS LIVE!
Each livestream can be recorded as local H.264 backup to an SD card. With the ability to combine recorded sources with live content, it’s possible to take one of these recordings and stream the content “as live” with ZATO CONNECT. This opens lots of creative opportunities and adds value to any stream or video presentation.

GET YOUR AUDIO IN THE MIX
ZATO CONNECT includes an audio mixer, which can be used to adjust and combine audio signals from the 3.5mm analog input with the embedded audio from HDMI and USB UVC sources. Each channel can be adjusted independently and mixed down to a single stereo track for a livestream, recording, or video presentation.

AN ESSENTIAL TOOLKIT
Whether it’s configuring streams, switching between sources, recording, playback, mixing audio, or adding effects, AtomOS Lite on the ZATO CONNECT makes it all a breeze. The software features a number of key tools including overlay effects, image zoom, and frame guides that will help add value to every stream or video conference.

CREATE AN IDENTITY
Whether through a livestream or virtual meeting, video has become an everyday part of all our lives. Today businesses, influencers, entrepreneurs, houses of worship, and educators all use video to establish an identity or reinforce a brand. Compelling content can make a difference and help emphasize branding, core messages, or even empower sponsorship opportunities. Applying graphic overlays to streams or watermarking recorded content is easy with ZATO CONNECT.

Physical Specifications
Height (mm/inches) 91,5mm / 3.6in
Width (mm/inches) 151mm / 5.94in
Depth (mm/inches) 29,5mm / 1.16in
Weight (grams/lbs) without battery / accessories 245g / 8.64oz.
Environmental
Ambient operating temperature (C/F) Up to 40 Degrees Celsius
Construction & Control
Body Polycarbonate ABS Plastic
Cooling Passive
Network Config settings Auto-Join WiFi, DHCP, Manual Network Configuration
Multi-function button Power / lock Screen
Power
Input voltage range 6.2V to 16.8V
Max wattage 20W
USB USB-PD
Compatible batteries 1 x NP-F / L-Series
Battery voltage 7.2V
DC in connector via locking DC Jack on optional Battery Eliminator (5.5mm OD &
2.1mm ID)
D-TAP Via optional D-Tap to DC cable
Display
Touchscreen SuperAtom IPS panel (capacitive touch)
Size 5.2″
Resolution 1920 x 1080
Viewing angle 178 + H & V
PPI 427
Bit depth 10-Bit (8+2 FRC)
Backlight Type Edge
Brightness (cdm2 / Nits) 1000
Color Gamut Rec709
Video In/Out
HDMI in 1 x HDMI 1.4 (up to 1080p60)
HDMI Out 1 x HDMI 1.4 (up to 1080p60)
USB In Webcam up to 1080p30
USB Out Webcam up to 1080p30 NO CATEGORY ON WEBSPECS FOR THIS
Bit Depth 8-Bit
Video Chroma Subsampling YCbCr 420
Audio In/Out
Audio Quality 16-Bit / 48kHz
Audio Codec PCM (In & Out) & AAC (Streaming & Recording)
HDMI 2ch, input dependent
Analogue Audio in 3.5mm Jack – 5v power
Analogue Audio Out 3.5mm Jack
USB USB Webcam 2ch
Headphone out 3.5mm Jack
Network
Ethernet via USB-C Dongle
Wi-fi Wi-Fi 5
USB Host USB Webcam
Atomos Cloud Connect to Atomos Cloud Studio services
Cellular Connect to Hot Spot via Wi-Fi
Web Streaming
USB UVC Yes, up to 1080p30
RTMP / S Yes, authenticate and configure via Atomos Cloud Studio
Resolution & Frame Rates (Record, Monitor & Playback)
FHD 1920 x 1080 Progressive up to 1080p60
1280 x 720 Progessive up to 720p60
Recording CODEC
h.264 up to 1080p60
Codec option LQ, MQ, HQ
Playback
H.264 Clips recorded on-device
HDMI out Up to 1080p60
UVC out Up to 1080p30
Monitoring
SDR Native
Supported media
Main
SD SD UHS-1 (up to 128GB size)
On screen tools
2 x Zoom Tap to zoom
Grid markers 9 grid
Frame guides 16:9, 1.91, 4:3, 1:1, 4:5, 9:16
Display Flip Vertical and Horizontal (Selfie mode)
Supported Applications
H.264 All Applications with support for H.264 in .MP4 wrapper
Warranty
Standard 1 Year
5-inch FullHD Livestream Monitor with gateway to ATOMOS Cloud Studio
Livestream directly to Facebook Live, Twitch, YouTube, and more
Transform HDMI and mirrorless cameras with plug-and-play UVC webcam out for meetings and presentations in Microsoft Teams, Skype, Slack, Zoom, and many others
Connect almost any HDMI device up to 1080p60 or any USB webcam at up to 1080p30
Mix audio levels from HDMI camera input, USB webcam & external mic/line inputs
Add custom PNG overlay graphics to create lower thirds, logos, and watermarks
Monitor Assist features including zoom 2x, 9 grid and extensive frame guides
Stream, record, and output your program simultaneously, to get your content online without limitation
Playback pre-recorded content “as live” via network streaming, UVC webcam, HDMI, or all at the same time
5-inch full HD, SuperAtom (1000nit) display for great visibility in even the brightest of locations
Wi-Fi 5 and 1Gbe Ethernet (via included USB-C adapter) to share your work with the world
