Atomos SHINOBI II

Overview
Atomos has been developing monitoring and recording technology for over a decade, and their latest product, the Shinobi II, is a testament to their expertise. Weighing just 210gms, it boasts a slim and low-profile design, making it the perfect accessory for vloggers, creatives, and photographers. But dont let its size fool you – the Shinobi II packs a punch with its 50% brighter 1500nit HDR, 5-inch touchscreen and camera control capabilities via USB-C for Canon, Panasonic, and Sony cameras. It even has a unique Analysis Mode that displays waveform, histogram, and vectorscope tools simultaneously, making it a versatile tool for any production.

Atomos has also made sure that the Shinobi II is user-friendly with its new AtomOS 11 user interface, which has a more modern look and easy access to all the essential monitoring tools. And despite its powerful features, the Shinobi II has low power consumption and can run all day on a single battery charge. With its lightweight design and extensive list of supported cameras, including plans for future firmware updates, the Shinobi II is the perfect companion for any photo or video shoot. So whether youre in the studio or shooting in bright sunlight, the Shinobi IIs 1500nit peak brightness and HDR monitoring capabilities will help you achieve perfect exposure every time.

Summary
Screen Size: 5.2inch
Resolution: 1920 x 1080
Inputs: HDMI
Included in box
1x Shinobi II
1x USB-C 2.0 cable
1x HDMI and USB-C locking cable adapter
1x Quick Start Guide

IMPROVED TOUCH TO FOCUS
All previously supported camera models can now use the Touch to Focus feature, even in Auto Focus Tracking/Continuous modes.

TOUCH TO FOCUS – MORE CAMERAS ADDED
Touch to Focus is now compatible with the highly-requested Canon EOS R1, Canon EOS R5 Mark II, Canon EOS R7, Nikon Z8, Sony FX3, and Sony FX30 cameras.

FUJIFILM X-T CAMERA CONTROL SUPPORT
With this update, we now support controlling the very popular Fujifilm X-T5, X-T4 and X-T3 cameras when connected to the Shinobi II via USB.

UPDATED LOG/HDR CONVERSIONS
This update includes various new options included in the Log/HDR section of the input menu for Z CAM Z-Log2, Leica L-Log, OM System OM-Log and Fujifilm F-Log 2.

This exciting new update means that more cameras are now supported, reaching a wider range of users and expanding the capabilities of the Shinobi II monitor.

New Features & Improvements:

Reliability improvements for Touch to Focus function
Additional camera models added to the Touch to Focus compatibility list
Fujifilm X-T line camera control support
Updated Log/HDR conversions

Firmware Update Procedure:

Atomos recommends that your Shinobi II is connected to mains power via a USB-C power adapter (minimum 10W output power) before installing the update. Alternatively, a fully charged NP-F battery will work just as well.

It is critical that your Shinobi II does not lose power during the firmware upgrade process.

Extract the firmware ZIP file downloaded from atomos.com.
Format an SD Card in either MS-DOS (FAT) on a Mac, or FAT32 / NTFS if you’re using a Windows PC.
Copy all .BIN files included in the ZIP archive onto the root directory of the previously formatted SD Card.
Insert the SD Card with the update files into the Shinobi II’s SD Card slot.
Power on your Shinobi II with a short press of the power button.
The Atomos logo will appear, and after a few seconds, the firmware update will begin automatically with the progress indicated below.
When the firmware update is complete, the Shinobi II will prompt you to restart the device. Before you restart, please wait for a few seconds to give the Shinobi II some extra time to complete the update.
Power off the Shinobi II by holding down the power button, and boot it up again shortly after.
When the Shinobi II has restarted, go to the Main menu, and select the Info tab. In there, verify that the version number matches the firmware you wanted to install.

Atomos has been developing amazing monitoring and recording technology for over a decade.

Shinobi II has been redesigned with a new, slimline case and a 50% brighter HDR screen, yet it still manages to pack in all of Atomos’ renowned screen processing technology and professional monitoring tools, plus exciting new hardware features like camera control. Take control of Canon, Panasonic or Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to Serial cable.

More vendors will be supported with future firmware releases. Due to its low power consumption and efficient hardware, Shinobi II will run all day on a single battery charge. Expose your shots accurately using our advanced exposure tools like false color, zebras, histograms, waveforms and vectorscopes. A multi-tool Analysis View gives you all the essential info at a glance.

There’s even a selfie Mirror Mode for vloggers. Shinobi II is the perfect accessory to improve any photo or video production.

The slim, lightweight, high brightness, 5-inch 1500nit HDR monitor that’s perfect for vloggers, creatives and photographers.

Camera control for an extensive list of cameras
Harnesses the versatility of USB-C to control most recent mirrorless or DSLR cameras from Canon, Panasonic and Sony, as well as the popular compact cinema cameras from Z CAM’s E2 line. There are plans to support cameras from Fujifilm, Nikon, OM System and SIGMA with future firmware updates.

Check camera status at a glance
Use the Camera Status indicator to keep an eye on the camera’s internal record settings, battery status and remaining record time. The red edge display shows when the camera is recording internally, regardless of whether it’s triggered by the camera or from the Shinobi II.

Get perfect exposure. Every time
Combine Shinobi II’s ability to adjust your camera lenses’ aperture, shutter speed/angle and ISO with its built-in exposure tools such as false color, waveforms, zebras, or the histogram and achieve perfect exposure on every shot.

New AtomOS. New look. New possibilities
Shinobi II runs under a version of our latest operating system, AtomOS 11. It not only looks amazing, but introduces a host of great new features.
We’ve made the tools more visible and improved the look of the icons so you know exactly what you’re selecting. It’s easier to use, more logical and feels more professional.

Overcome the limitations of small camera displays
Enjoy the 50% brighter – 1500nit peak brightness, 5-inch, high-resolution HDR touchscreen, no matter if you’re shooting in the studio or in bright sunlight.

Monitor a variety of input signals
Shinobi II comes equipped with a single HDMI 1.4 port and allows you to monitor signals in various resolutions and frame rates. Most notably, 4K DCI and 4K UHD at up to 30p, and 1080p HD signals at up to 60p.

HDR monitoring and LUT support
Use the HDR HLG and HDR PQ monitoring modes to preview what your camera’s LOG output might look like in HDR, or upload up to 8 LUTs to Shinobi’s built-in storage to preview your shots in your favorite looks.

Frame guides for every delivery medium
Use a variety of cinema-style or social media-focused frame guides to compose your shots for every delivery medium. Shinobi II comes packed with presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9, 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2.

Lightweight and adaptable
Despite adding even more hardware features, we managed to keep Shinobi II’s weight down to an incredible 210 grams and added holes for locating pins at the bottom for more secure mounting in any situation. The battery compartment is placed at the center of the device to improve balancing and maneuverability, while the included HDMI & USB-C locking adapter allows you to use Atomos’ new line of locking cables for rock-solid connectivity.

Flexible power options
Power Shinobi II with NP-F style batteries, the optional battery eliminator in combination with our DC barrel to D-Tap cable, or via USB-C PD (10W input). You can also charge / power your camera via USB-C PD (13W output), all while using Shinobi II’s camera control features.

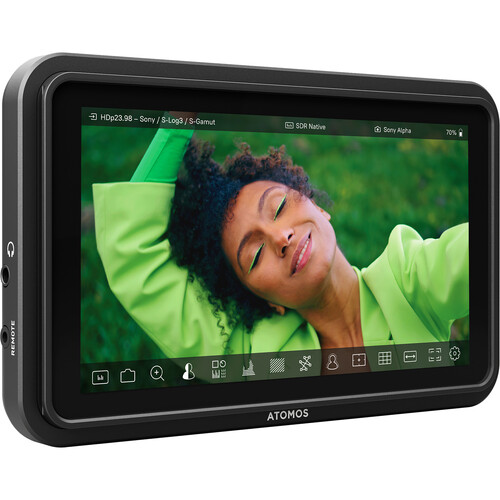

Display
Touchscreen SuperAtom IPS panel (capacitive touch)
Size 5.2-inch
Resolution 1920 x 1080
178 + H & V
PPI 427
Bit depth 10-bit (8+2 FRC)
Backlight Type Edge lit
Brightness (cdm2 / Nits) 1500
Aspect ratio 16/9
Colour Gamut Rec.709
Calibration support Atomos Calibrator on PC/Mac with
Calibrite ColourChecker Display Pro & ColourChecker Display Plus and
Simple on-device calibration (connect Calibrite probe directly to Shinobi II via USB-C)
Colour Pipeline
Gamma Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3,
Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320
/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /
LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG,
JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm
F-Log, PQ (HDR10), HLG, Nikon N-Log
Gamut BT.2020, DCI P3, DCI-P3 D65, Rec709, Sony S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709
Canon Cinema / BT.2020 / DCI P3 / DCI P3plus / Rec.709
Panasonic V Gamut / Rec.709
Arri Alexa Wide Gamut / Rec.709
JVC LS300 / Rec.709
Red DragonColour / DragonColour2 / RedColour2 /
RedColour3 / RedColour4 / RedWideGamut
3D LUT Display .Cube Format (17 & 33 points supported)
3DLUT 50/50 Yes
Monitoring Modes SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT
Video Input
HDMI 1 x HDMI (1.4)
Bit Depth 8/10-bit video
Video Chroma Subsampling 4:2:2
Audio In/Out
HDMI 2 channel, 24-bit, input dependent
Analogue Audio in 3.5mm headphone jack, 2 channel

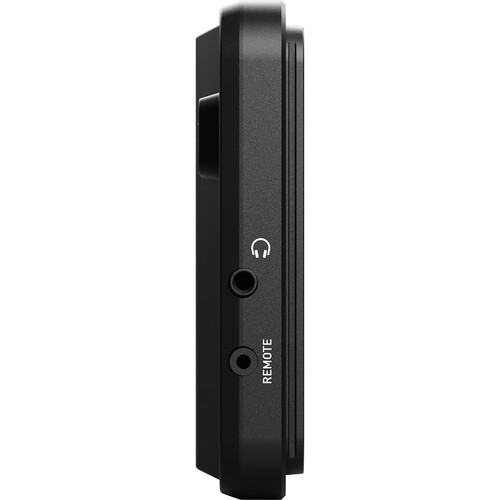

Headphone out 3.5mm headphone jack, 2 channel
Timecode / Sync / Control
Embedded HDMI (display only)
Resolution & Frame Rates (Monitor)
4K DCI 23.98/24/25/29.97/30
4K UHD 23.98/24/25/29.97/30
FHD 1920 x 1080 Progressive 23.98/24/25/29.97/30/50/59.94/60
FHD 1920 x 1080 Interlaced 50i/60i
1280 x 720p 50/59.94/60p
Supported media
SD Update firmware & upload LUTs
File System FAT32, NTFS
On screen tools
MultiScope Analysis View Image, WFM, vector, histogram
Waveform 3 sizes – adjustable opacity & brightness
Histogram 3 sizes – adjustable opacity & brightness
RGB parade 3 sizes – adjustable opacity & brightness
Vector scope 1 size – adjustable opacity & brightness
1 x Zoom Tap to zoom
2 x Zoom Tap to zoom
4 x Zoom Tap to zoom
Focus peaking 4 modes (colour, black & white, outline, edge sharpening)
with adjustable outline colour & peaking intensity
Atomos False colour Yes, with Scale
Zebra Adjustable threshold (50% to 105%)
Isolate colour channel Blue Only
Cine Frame Guides Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9
Social Frame guides Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
Safe areas SMPTE safe title area – 93% & 90%
Grid markers 9 grid
Anamorphic desqueeze 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
Display Flip Horizontal & vertical
Remote Control
Serial 2.5mm Jack Calibration via optional USB to serial cable
External Device Control
Serial 2.5mm Jack Camera control for Z CAM cameras via optional USB to Serial Cable
USB Camera control for supported cameras via USB-C.
Controllable functions: Record Trigger, White Balance,
Shutter Speed, Shutter Angle (if supported by camera),
Aperture, ISO, Camera Overlays, Record Indicator
Physical Specifications
Dimensions (W x H x D mm) 151mm x 91.5mm x 20.8mm
(28.5mm with locking cable adaptor attached)
Weight 210g / 7.4 oz
Mount points Bottom: 1 x 1/4-inch 20 with anti-rotational points
Environmental
Ambient operating temperature Up to 40 degrees Celsius
Construction & Control
Body ABS polycarbonate
Cooling Passive heat sink

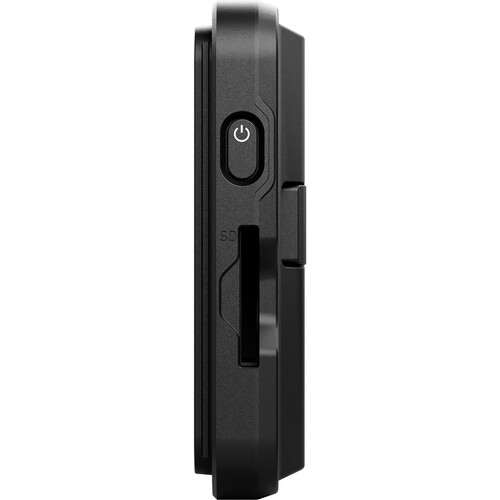

Multi-function button Power / lock screen
Power
Input voltage 6.2V to 16.8V
Operating power <10W Compatible batteries NPF L series Built in battery No Continuous power Via NPF battery and USB-C PD Power DC in connector Via Battery Eliminator (optional) DTAP Via Battery Eliminator and optional D-Tap to DC barrel cable USB PD IN < 10W USB PD OUT > 13W
What’s in the box
Accessories included Shinobi II, USB-C 2.0 cable,
HDMI and USB-C locking cable adapter, Quick Start Guide
Optional extras Quick Release Monitor mount, NP-F Battery Eliminator,
DC to Dtap Cable, Power Kit, HDMI cables, USB-C to serial cable
Warranty
Standard 1 year. Extended to 2 years on product registration.

Much slimmer body and low-profile design weighing just 210gms.
50% brighter – 1500nit HDR, 5-inch, high-resolution touchscreen.
Camera control via USB-C for Canon, Panasonic and Sony cameras, plus Z CAM cameras via optional USB-C to Serial cable.
Use the Camera Status indicators to check the camera’s internal record settings, battery status & remaining record time.
New AtomOS 11 user interface has a more modern look, more responsive operation and easy access to all the most-used monitoring tools.
Powered by NP-F style batteries, or via USB-C PD (10W input). Also charge/power the camera via USB-C PD (13W output).
Included HDMI & USB-C locking adapter allows you to use Atomos’ new line of locking cables for rock-solid connectivity.
Unique Analysis Mode can deploy the waveform, histogram & vectorscope tools simultaneously.
Frame Guides and 9 Grid help get perfect framing and composition.
Low power consumption – Shinobi II can run all day off a single battery charge.
