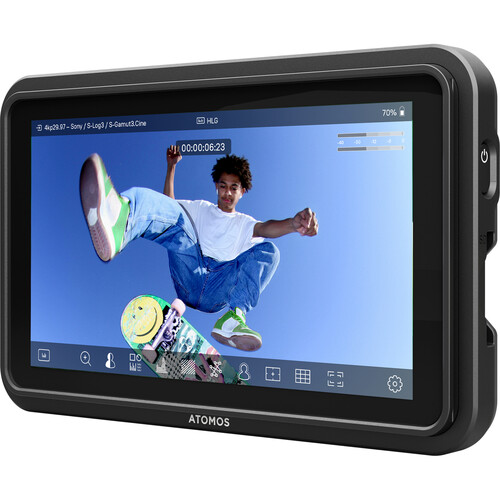

Atomos Shinobi GO

Overview
Atomos announces a new addition to its award-winning Shinobi range of professional monitors with the new Shinobi GO model, a slim, lightweight, high brightness, 5-inch 1500nit HDR monitor that’s perfect for content creators and photographers. The new model includes professional monitoring features like false colour, zebra, histogram, waveform, and vector scope. It is powered by Sony NP-F type batteries (purchased separately) or via the USB-C port using a power bank, offering flexibility for extended shooting sessions.

Shinobi GO follows the successful launch of Shinobi II last year, offering some of the same high quality monitoring tools as its more advanced best-selling sister product, but without camera control, touch to focus, and other pro monitoring features like EL ZONE. Both Shinobi GO and Shinobi II share the same size sunhood and other accessories, making it very convenient to share batteries, cables, rigs and other attachments for professionals that own a variety of equipment and need the flexibility to be able to mix and match between their camera set-ups.

Summary
Screen Size: 5.2inch
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Inputs: HDMI
Outputs: Stereo Mini Jack
Included in box
1x Shinobi GO Monitor
1x USB-C 2.0 Cable

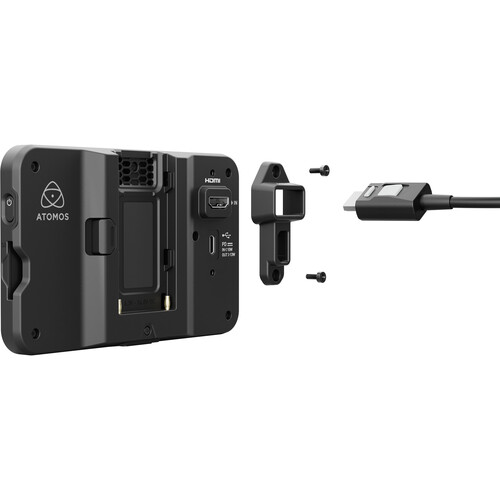

1x HDMI and USB-C Locking Cable Adapter
1x Quick Start Guide

About the Atomos Shinobi GO
Atomos announces a new addition to its award-winning Shinobi range of professional monitors with the new Shinobi GO model, a slim, lightweight, high brightness, 5-inch 1500nit HDR monitor that’s perfect for content creators and photographers.

The new model includes professional monitoring features like false colour, zebra, histogram, waveform, and vector scope. It is powered by Sony NP-F type batteries (purchased separately) or via the USB-C port using a power bank, offering flexibility for extended shooting sessions.

Shinobi GO follows the successful launch of Shinobi II last year, offering some of the same high quality monitoring tools as its more advanced best-selling sister product, but without camera control, touch to focus, and other pro monitoring features like EL ZONE.

Both Shinobi GO and Shinobi II share the same size sunhood and other accessories, making it very convenient to share batteries, cables, rigs and other attachments for professionals that own a variety of equipment and need the flexibility to be able to mix and match between their camera set-ups.

Monitor HDMI signals up to 4K UHD using the waveform, histogram and vectorscope tools simultaneously. Built-In LUT to preview looks – store up to 8 LUTs. Low power draw – can run all on single battery. Frame Guides – frame shots with confidence, for social media or cinematic productions. USB-C PD – power Shinobi GO via USB-C PD; power/charge your camera too.

Display
Display Panel SuperAtom IPS Panel (Capacitive Touch)
Size 5.2-inch
Resolution 1920 x 1080
Viewing Angle 178 + H & V
PPI 427
Bit Depth 10-bit (8+2 FRC)
Backlight Type Edge-lit
Brightness (cd/m² / nits) 1500
Aspect Ratio 16:9
Color Gamut Rec.709
Calibration Support No on-device calibration
Atomos Calibrator on PC/Mac with Calibrite ColorChecker Display Pro & ColorChecker Display Plus
Color Pipeline
Gamma Sony S-Log / S-Log2 / S-Log3,
Canon C-Log / C-Log 2 / C-Log3,
Panasonic V-LOG,
JVC J-Log1,
Fujifilm F-Log / F-Log2,
Nikon N-LOG / HLG,
Olympus OM-LOG400 / FLAT, OM-System OM-LOG400 / FLAT,
Leica L-LOG
Gamut BT2020, DCI P3, DCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine,
Canon Cinema / DCI P3 / DCI P3+ / BT.2020, Panasonic V Gamut, JVC LS300
3D LUT Display .Cube format (17 & 33 points supported)
3D LUT 50/50 Split Yes
Monitoring Modes SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT
Display Controls Backlight, Lift, Gamma, Gain
AtomHDR Built-in Technical Log to HDR EOTF
3D LUTs Load .Cube files from SD Card into 8 LUT Slots On-Device & use for Monitoring
Video Input
HDMI 1x HDMI (1.4)
Bit Depth 8 / 10-Bit
Chroma Subsampling YCbCr 4:2:0 & 4:2:2
Audio In/Out
HDMI Embedded 2-channel, 24-bit, input dependent

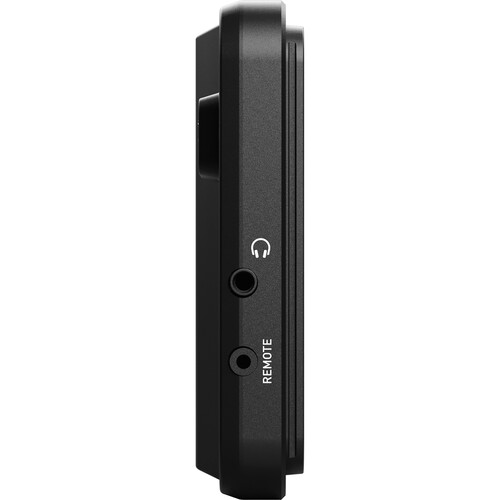

Headphone Out 3.5mm headphone jack, 2-channel
Resolution and Frame Rates (Monitoring)
4K DCI No 4K DCI Resolution Support
4K UHD 23.98/24/25/29.97/30
FHD 1920 x 1080 Progressive 23.98/24/25/29.97/30/50/59.94/60
FHD 1920 x 1080 Interlaced 50i/60i
1280 x 720 Progressive 50/59.94/60p
Supported Media
SD Card Update firmware & upload LUTs
File System FAT32, NTFS
On-Screen Tools
MultiScope Analysis View Image, waveform, histogram, & vectorscope
Waveform 3 sizes – adjustable opacity & brightness
Histogram 3 sizes – adjustable opacity & brightness
RGB Parade 3 sizes – adjustable opacity & brightness
Vectorscope 1 size – adjustable opacity & brightness
1x Zoom Tap to Zoom
2x Zoom Tap to Zoom
4x Zoom Tap to Zoom
Focus Peaking 4 modes (color, black & white, outline, edge sharpening)
with adjustable outline color & peaking intensity
Colorized Exposure Atomos False Color
Zebra Adjustable threshold (50% to 105%)
Isolate Color Channel Blue only
Cine Frame Guides Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9
Social Frame Guides Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
Safe Areas SMPTE Safe Title Area – 93% & 90%
Grid Markers 9 grid
Display Flip Horizontal & Vertical
External Device Control
USB-C USB-C for device power
Serial 2.5mm Jack Use with Atomos calibration cables, and calibration software
Physical
Dimensions (W x H x D mm) 151mm x 91.5mm x 20.8 mm
(28.5mm with locking cable adaptor attached)
Weight 210g / 7.4oz.
Mounting Points Bottom: 1 x 1/4-inch 20 with anti-rotational points
Environmental
Ambient Operating Temperature Up to 40 degrees Celsius
Construction
Body ABS Polycarbonate Plastic
Cooling Passive heat sink

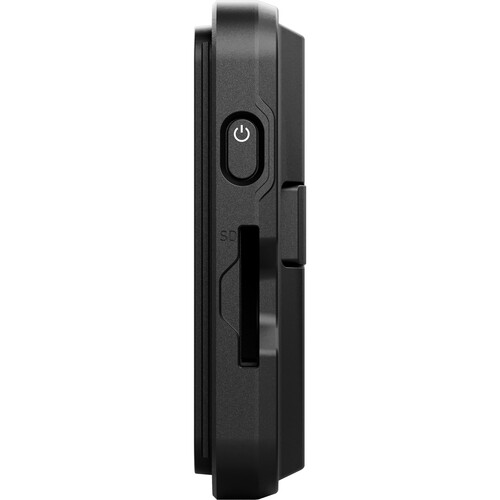

Multi-Function Button Power / Lock Screen
Touch Screen Capacitive Touch
Power
Input Voltage 6.2V to 16.8V
Compatible Batteries 1x NP-F / L-Series
Built-in battery No
Continuous power Via NPF battery or USB-C PD
DC-In Connector Via Battery Eliminator (separate purchase)
D-Tap Via optionally available Battery Eliminator or
D-Tap to DC-Barrel Cable (separate purchases)
What’s in the box
Included Shinobi GO, USB-C 2.0 cable, HDMI + USB-C locking cable adapter, Quick Start Guide
Optional Accessories Quick Release Monitor Mount, NP-F Battery Eliminator,
DC to DTap Cable, Power Kit, HDMI cables, USB-C to serial cable
Warranty
Standard 1 year. Extended to 2 years on product registration

Slim, Lightweight, Low-Profile Design
5.2″ 1920 x 1080 Capacitive Touchscreen
USB PD Power
High 1500 cd/m² Brightness
4K HDMI Input, HDR/HLG/PQ Support
AtomHDR Mode with 10-Stop Dynamic Range
USB Calibration Support
Single Sony L-Series Battery Slot
