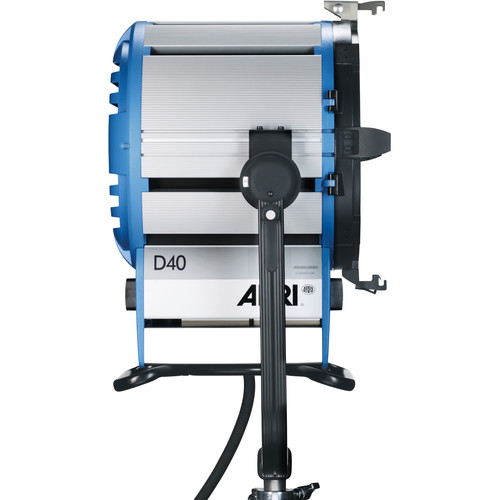

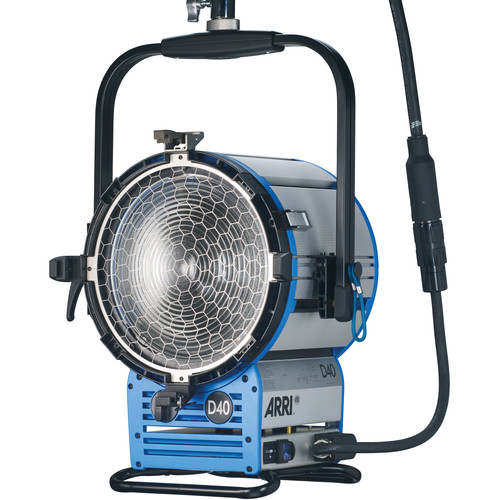

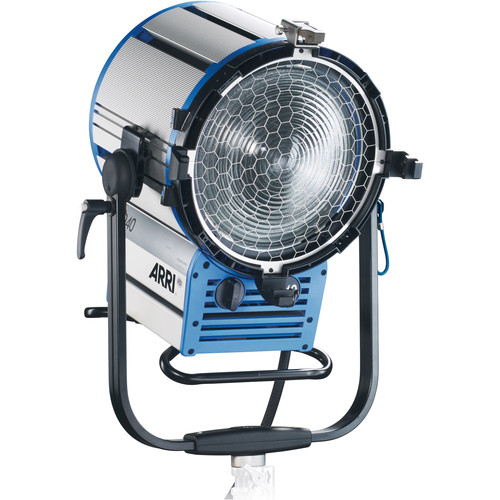

ARRI True Blue D40 Fresnel Light

Overview
Cross Cooling is a feature of ARRI TRUE BLUE D-Series Fresnels that allows for efficient cooling and prevents overheating during use. This ensures the spotlight can be used for extended periods of time without any issues. Additionally, the spotlight is designed for easy maintenance, making it a convenient choice for location lighting needs.

The ARRI TRUE BLUE D-Series Fresnels also come equipped with adjustable accessory brackets, a barndoor safety catch, and a sliding and lightweight stirrup. These features allow for versatile positioning and secure attachment of accessories. Other notable features include a tilt lock with disc break, stainless steel lens protection, and robust True Blue barndoors and Location Top Latch for added durability. With a protection class of IP23, these Fresnels are suitable for various weather conditions and are a reliable choice for all types of location lighting.

Included in box
1x True Blue D40 Light (VEAM)

About the ARRI True Blue D40 Fresnel Light
Where a lightweight Fresnel spotlight using daylight characteristics with compact size and high efficiency is needed, ARRI TRUE BLUE D-Series Fresnels are the preferred choice. ARRI’s elegant modular construction, using corrosion-resistant aluminium extrusions and lightweight die castings, offers great structural strength and weather resistance. Together with ARRI flicker-free Electronic Ballasts, the rugged TRUE BLUE D-Series is ideal for all types of location lighting.

Lamphead Type: Fresnel, 4000 W
Reflector Type: Spherical specular high purity aluminium
Lamp Type: Metal Halide 4000 W/SE
Power Consumption: 4000 W
Voltage Range: 200 V
Lamp Base: G38
Dimmability: Yes, 50 – 100% via ARRI Ballast Unit
Cable Options: VEAM
Correlated Colour Temperature: 6000 K
Beam Angle: 6,5°- 61°
Product Weight: 17,5 kg / 38.6 lbs.
Shipping Weight: 22,0 kg / 48.5 lbs. (incl. pallet)
Product Size (HxWxL): 727 x 534 x 403 mm / 28.6″ x 21.0″ x 15.9″
Shipping Size (HxWxL): 770 x 600 x 600 mm / 30.3″ x 23.6″ x 23.6″
Lens Diameter: 300 mm / 11.8″
Accessory Diameter: 400 mm / 15.75″ (Scrim)
Barndoor Size: 413 mm / 16.26″
Mounting: Spigot 28 mm / 1 1/8″ (1.1″)
Protection Class: I/IP 23
Certifications: CE, CB, GS, cNRTLus

Cross Cooling
Easy Maintenance
Adjustable accessory brackets
Barndoor Safety Catch
Sliding and lightweight stirrup
Tilt lock with disc break
Stainless steel lens protection
Robust True Blue barndoors
Robust Location Top Latch
Protection class IP23
