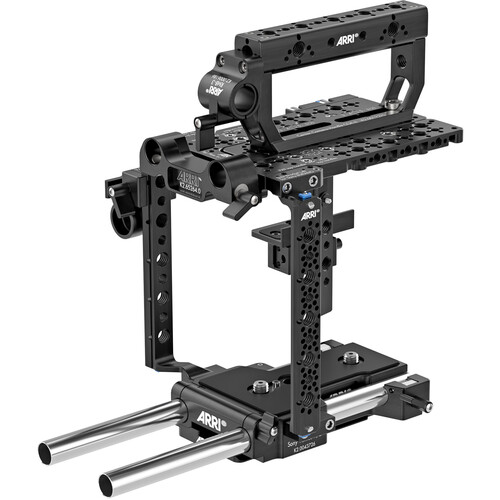

Arri Pro Cine Set for Sony BURANO

Overview
The Pro Cine Set for Sony BURANO is a two-part design that is compatible with various top handles, including Burano, FX9, and CCH-4. It also includes interfaces for side and rear brackets, as well as ARRI Multi-Hex screws. The set is also compatible with the K2.65264.0 15mm LWS Rod Console, allowing for the use of 15mm rods. Additionally, the top plate allows for the mounting of the BURANO’s focus hook and cable guide.

The Plate for Sony Venice 1/2 is equipped with two integrated 15mm lightweight supports and offers M4 threads on each side for attaching side brackets. The Bridge Plate Adapter BPA-5 allows for quick transfer from shoulder cameras to cine style bridge plates and is compatible with multiple camera models. The Camera Center Handle CCH-4 is a closed top handle with various interfaces for additional accessories and can be mounted in three different positions on the Top Plate for the Sony Venice. The set also includes side brackets, a NATO rail clamp, a 15mm reduction insert, support rods, a rear side bracket, a NATO rail adapter, and a rod mounting bracket.

Included in box
Top Plate for Sony BURANO (K2.0049751)
Plate for Sony Venice 1/2 (K2.0043726)
Bridge Plate Adapter BPA-5 (K2.0017138)
Camera Center Handle CCH-4 (K2.0017270)
Side Bracket Right for Sony BURANO (K2.0049819)
Side Bracket Left for Sony BURANO (K2.0049816)
NATO Rail Clamp NRC-1 (K2.0047776)
15mm Reduction Insert (K2.66255.0)
15mm LWS Rod Console (K2.65264.0)
Support Rods 240mm/9.4in, Ø15mm (K2.66253.0)
Rear Side Bracket Right for Sony BURANO (K2.0049904)
NATO Rail Adapter NRC-2 (K2.0048324)
Rod Mounting Bracket RMB-3 (K2.0006186)

About the Arri Pro Cine Set for Sony BURANO
Pro Cine Set for Sony BURANO

Top Plate for Sony BURANO:

Two-part design compatible with the following top handles: Burano, FX9, CCH-4 (height adjustment for FX9 top handle included)
Compatible with K2.65264.0 15mm LWS Rod Console at the front or back to use
15mm rods
Focus Hook and cable guide from the BURANO can be mounted on the top plate
Multiple interfaces (ARRI Pin Lock 3/8 and ¼”; M4)
Includes interfaces for the side brackets left/right and rear side bracket
ARRI Multi-Hex screws implemented

Plate for Sony Venice 1/2:

The Plate comes with two integrated 15mm lightweight supports (at the front and the back) and is compatible with the BPA-5 (K2.0017138) and the BSA-1 (K2.0043749). This plate offers a pair of M4 threads on each side to attach the side brackets left and right.

Bridge Plate Adapter BPA-5:

The Bridge Plate Adapter BPA-5 allows quick transfer from shoulder camera to cine style bridge plates such as BP-8 and BP-9. It is compatible with the upper part of the Plate for Sony Venice, Sony Venice Extension Unit, Canon C300 MKIII, C500 MKII and Broadcast Plate for ALEXA Mini/Mini LF.

Camera Center Handle CCH-4:

The CCH-4 is a completely closed top handle and is compatible with most of the ARRI PCA top plates (not compatible with the top plate for RED, C300 MkII, Sony A7 and MAP-1 from ALEXA Mini). Numerous interfaces (1/4-20”; 3/8-16”; M4) for additional accessories (e.g. RMB-3) are integrated. The CCH-4 can be mounted onto the Top Plate for the Sony Venice in three different positions and is compatible with the Sliding Adapter for the CCH-4 (K2.0019282).

Side Bracket Right for Sony BURANO:

Offers protection and the possibility to attach accessories
NATO Rail included with safety release mechanism
Provides multiple interfaces (NATO rail, ARRI Pin Lock 3/8 and ¼”)
ARRI Multi-Hex screws implemented

Side Bracket Left for Sony BURANO:

Offers protection and the possibility to attach accessories
NATO Rail included with safety release mechanism
Provides multiple interfaces (NATO rail, ARRI Pin Lock 3/8 and ¼”)
ARRI Multi-Hex screws implemented

NATO Rail Clamp NRC-1:

19mm rod attachment on NATO rails
Compatible with all three side brackets for the Sony BURANO

15mm Reduction Insert:

The 15 mm reducing insert can be fitted to any 19 mm rod mount to allow compatibility with 15 mm rods.

15mm LWS Rod Console:

Can be mounted to several ARRI support accessories and offer optional front and rear or top mounted 15mm LWS rods.

Support Rods 240mm/9.4in, Ø15mm:

One pair Ø 15 mm, stainless steel, lightweight

Rear Side Bracket Right for Sony BURANO:

Offers protection and the possibility to attach accessories
NATO Rail included with safety release mechanism
Provides multiple interfaces (NATO rail, ARRI Pin Lock 3/8 and ¼”)
ARRI Multi-Hex screws implemented

NATO Rail Adapter NRC-2:

Attachment for video transmitters on NATO rails
Multiple possibilities to mount transmitters due to a two-part modular design
Compatible with all three side brackets for the Sony BURANO

Rod Mounting Bracket RMB-3:

The RMB-3 supports a single 19 mm rod (15 mm rod via reduction insert K2.66255.0) and is well suited to accessories such as lens motors or lightweight viewfinder mounts.

Compatible With Sony Burano
