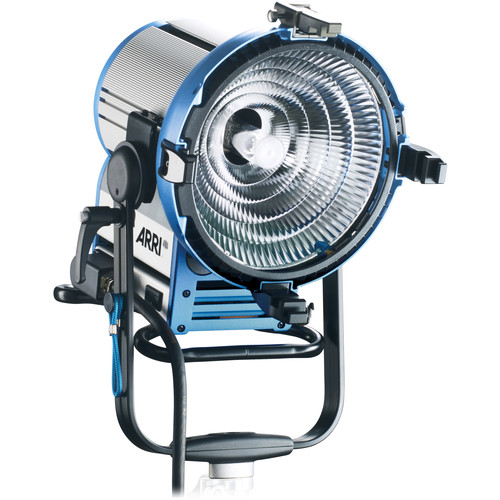

ARRI M18 Lamp Head Set

Overview
The Lens-less ARRIMAX Technology makes the M18 an easy-to-use HMI light. It features a new 1800 W lamp that is virtually the same size as a 1200 W lamphead but produces more than 70% more brightness. This light can be powered from most domestic sockets worldwide and can use existing 575/1200 cables. It also has the ability to be used with 1200 W lamps and ballasts, making it a versatile option.

The M18 also boasts True Blue features such as Cross Cooling, which allows for safe operation at any tilt angle, and an IP23 protection class. Its True Blue tilt lock can hold even heavy Chimeras, making it a reliable choice. Additionally, the M18 is easy to maintain, making it a convenient and efficient option for any lighting setup.

Included in box
1x ARRI M18 with VEAM connection
1x EB1200/1800 Ballast (L2.76625.0)
1x 4-leaf barndoor
1x Spillring
1x Head to Ballast cable

About the ARRI M18 Lamp Head Set
The M18 combines MAX Technology, True Blue features and a new 1800 W lamp. The result is an exciting new class of HMI that can be powered from most domestic sockets. It is as small as a 1200 W PAR lamphead but with 70% higher light output. Adjustable from 20° to 60° beam angle, the M18 can also be used with 1200 W lamps and can is able to run from most domestic sockets worldwide.

Lamphead Type: Open Face with Facetted Reflector, 1800 W
Reflector Type: MAX Technology® reflector made of high purity aluminium
Lamp Type: Metal Halide 1800 W/SE; Metal Halide 1200 W/SE
Power Consumption: 1800 W / 1200 W
Voltage Range: 100 V / 140 V
Lamp Base: G38
Dimming: Yes, 50 – 100 % via ARRI Ballast Unit
Cable Options: VEAM
Correlated Colour Temperature: 6,000 K
Beam Angle: 20 – 60° (with 1800 W lamp)
Weight: 10.5 kg / 23.1 lbs
Packed weight: 15.5 kg / 34.2 lbs (incl. palette)
Size (W x L x H): 387 x 388 x 567 mm / 15.2 x 15.3 x 22.3 inches
Packed size (W x L x H): 510 x 555 x 530 mm / 20.1 x 21.9 x 20.9 inches
Lens Diameter: 250 mm / 9.84″
Accessory Diameter: 330 mm / 13″ (Scrim)
Barndoor size: 344 mm / 13.54″
Mounting: Spigot 28 mm / 1 1/8″ (1.1″)
Protection Class: I/IP23
Certifications: CE, CB, GS, cNRTL

Lens-less ARRIMAX Technology: Easy to use
New 1800 W lamp
Virtually the same size as a 1200 W lamphead but more than 70 percent brighter
Runs from most domestic sockets world-wide
Uses existing 575/1200 cables
Can also be used with 1200 W lamps and ballasts
Cross Cooling allows safe operation at any tilt angle
Protection class IP23
True Blue tilt lock holds even heavy Chimeras
Easy maintenance
