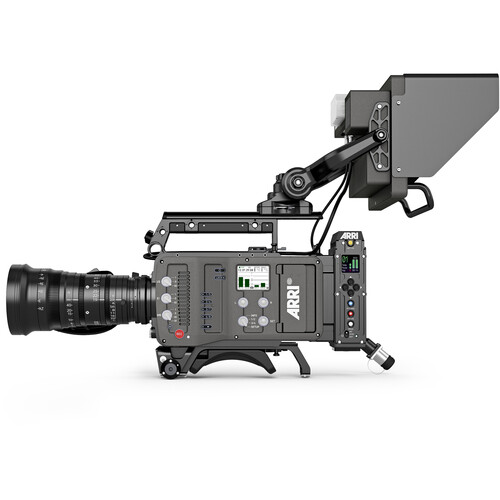

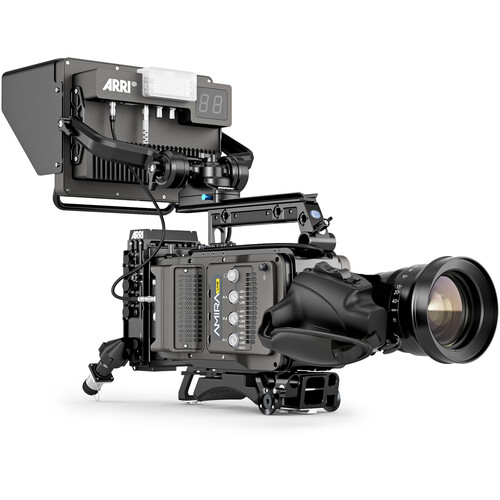

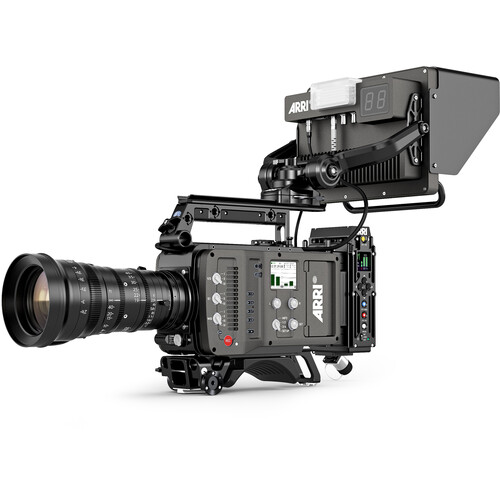

Arri AMIRA Live Camera Set

Overview
ARRIs AMIRA Live camera is designed specifically for live, multi-camera applications. One of its key features is the elimination of external cables between the camera body and the fiber backend, resulting in a clean, uncluttered, and reliable camera configuration. This is ideal for live broadcast environments and is made even better with the addition of the ARRI Viewfinder Multicam Monitor VMM-1, which allows for versatile monitoring and control options.

The AMIRA Live also boasts impressive cinematic capabilities, thanks to its Super 35 format ARRI sensor. This sensor, combined with ARRIs color science, provides unsurpassed overall image quality with natural skin tones and a dynamic range of over 14 stops. The camera also has expanded multicam features, including improved noise reduction and faster boot-up, making it a top choice for high-end live productions.

Summary
Dynamic Range: 14+ Stops
Native ISO: ISO 800
Lens Mount: PL Mount
Recording Formats: ARRIRAW
Internal ND: Yes
Audio Inputs: XLR
Shutter: Rolling
Battery Mount / Type: V-Lock
Media Type: CFast 2.0
Resolution and Frame Rate: 3840×2160 (UHD ProRes) @ 60fps Max
Sensor: Super 35
Video Outputs: 3G-SDI
Weight: 5-8kg
Wi-Fi: No
Included in box
1x AMIRA Live Body
1x AMIRA Advanced License Key
1x AMIRA 4K UHD License Key
1x AMIRA ARRI Look Library License Key

About the Arri AMIRA Live Camera Set
Purpose-designed Super 35 live TV camera

Designed specifically for live, multi-camera applications, AMIRA Live features internal cabling between the camera body and the 1820 Fiber Camera Adapter. The resulting camera configuration is clean, uncluttered, reliable, and perfect for live broadcast environments, especially in tandem with the ARRI Viewfinder Multicam Monitor VMM-1. With its cable-less design, AMIRA Live has more in common with the system cameras typically used for multi-camera broadcasts, but unlike those cameras, AMIRA Live features a Super 35 format ARRI sensor. This unique combination of system camera efficiencies and truly cinematic images, with shallow focus, rich textures, and natural colours, puts AMIRA Live in a class of its own.

Cinematic loo for live broadcasts

Uses ARRI’s legendary ALEV III Super 35 sensor – the same sensor design as used in all ALEXA cameras
Unsurpassed overall image quality and sophisticated ARRI colour science
Natural, flattering skin tones
Highest dynamic range of over 14 stops
Live broadcast images on a par with high-end movies, TV series, and OTT productions
Record in-camera for post, finishing, or slow-motion effects, while simultaneously transmitting live HD or UHD signals

Expanded Multicam features

New SUP 6.1 software update adds enhanced multicam functionality
Improved noise reduction, increased sharpness, better defect pixel correction, and faster boot-up
Intercom talkback via the VTR or user button for easier communications when operating the camera from the shoulder
Enhanced system support with green tally in the viewfinder and automatic boot-up
Use cine-style lenses with the same workflow as system camera lenses: no additional device needed for direct RCP iris control via cforce RF motors
Reliable configuration for live productions

Elimination of external cables between AMIRA Live and fiber backend
Ideally suited to multi-camera live broadcasts
Faster setup of the camera system
Reduced risk of accidental cable disconnection or damage
Cleaner camera configuration easier to work with for camera operators

ARRI VMM-1 Monitor

The Viewfinder Multicam Monito VMN-1 is versatile, 10-inch onboard monitor that connects directly to the camera viewfinder interface or can be daisy-chained with the Camera Contro Panel CCP-1. It includes controls for contrast, colour, backlight, and peaking (incuding peaking on/off switch), a physical on/off switch for the frontside tally, and two camera user buttons. Accompanying the monitor is ARRI’s adjustable quick-release Monitor Yoke Support MYS-1 bracket, designed specifically for the VMM-1 and Multicam setups.

PLEASE NOTE:The camera set does not include a viewfinder, lens mount our camera base mount, please order those separately, same as with the standard AMIRA camera set. The AMIRA Advanced license can be upgraded to the AMIRA Premium license with the “AMIRA Advanced to Premium license”. There will also be an additional K0 including the Premium license.

Sensor Type Super 35 format ARRI ALEV III CMOS sensor with Bayer pattern colour filter array
Sensor Maximum Number of Photosites and Size 3200 x 1800
26.40 x 14.85 mm / 1.039 x 0.585″
⌀ 30.29 mm / 1.193″
Sensor Frame Rates 0.75 – 200 fps
Weight 5.2 kg / ∼11.5 lbs
(camera body with DTS Fiber Adapter and PL lens mount
Photosite Pitch 8.25 μm
Sensor Active Image Area (photosites) S16 HD: 1600 x 900
HD: 2880 x 1620
2K: 2868 x 1612
3.2K: 3200 x 1800
4K UHD: 3200 x 1800
ARRIRAW 16:9 2.8K: 2880 x 1620
Sensor Active Image Area (dimensions) S16 HD: 13.20 x 7.43 mm / 0.520 x 0.292″
HD: 23.76 x 13.37 mm / 0.935 x 0.526″
2K: 23.66 x 13.30 mm / 0.932 x 0.524″
3.2K: 26.40 x 14.85 mm / 1.039 x 0.585″
4K UHD: 26.40 x 14.85 mm / 1.039 x 0.585″
ARRIRAW 16:9 2.8K: 23.76 x 13.37 mm / 0.935 x 0.526″
Recording File Container Size (pixel) S16 HD: 1920 x 1080
HD: 1920 x 1080
2K: 2048 x 1152
3.2K: 3200 x 1800
4K UHD: 3840 x 2160
ARRIRAW 16:9 2.8K: 2880 x 1620
Recording File Image Content (pixel) ProRes S16 HD: 1920 x 1080
ProRes HD: 1920 x 1080
ProRes 2K: 2048 x 1152
ProRes 3.2K: 3200 x 1800
ProRes 4K UHD: 3840 x 2160
ARRIRAW 16:9 2.8K: 2880 x 1620
Exposure Latitude 14+ stops over the entire sensitivity range from EI 160 to EI 3200 as measured with the ARRI Dynamic Range Test Chart
(DRTC-1)
Exposure Index Adjustable from EI 160-3200 in 1/3 stops
EI 800 base sensitivity
Shutter Electronic shutter, 5.0°- 356° or 1s – 1/8000s
Recording Formats MXF/ARRIRAW
Apple ProRes 4444 XQ
Apple ProRes 4444
Apple ProRes 422 HQ
Apple ProRes 422
Apple ProRes 422 LT
MPEG-2 HD
Recording Media CFast 2.0 Cards
Recording Frame Rates ProRes HD: 0.75 – 200 fps
ProRes S16 HD: 0.75 – 200 fps
ProRes 2K: 0.75 – 200 fps
ProRes 3.2K: 0.75 – 60 fps
ProRes UHD: 0.75 – 60 fps
MFX/ARRIRAW 16:9 2.8K: 0.75 – 48 fps
MPEG-2 HD: 23.976 – 59.94 fps
Recording Modes Standard real-time recording
Pre-recording
Intervalometer
Stop Motion

Elimination of external cables between AMIRA Live & the fiber backend
Ideally suited to multi-camera live broadcasts
Faster setup of the camera system
Reduced risk of accidental cable disconnection or damage
Cleaner camera configuration is easier to work with for camera operators •
Versatile 10-inch Viewfinder Multicam Monitor VMM-1
