Overview
ARRI 1TB CODEX Drive Express: The CODEX Compact Drive Express 1TB was created exclusively to allow Apple ProRes recording on the ALEXA 35. The Drive offers 960 GB usable capacity and up to 8 Gbps (~950 MB/s) write speed, so you reach the same max fps for Apple ProRes recording as the regular 1TB Drive. ALEXA 35 recording capacity at 24 fps- approx. 1hr 20min UHD Apple ProRes 4444XQ- approx. 2hrs UHD ProRes 4444. Notes- This drive is only supported in the ALEXA 35 and ALEXA 35 Live. It does not work in any other camera. The Compact Drive Express 1TB is marked with a white ring.
CODEX Compact Drive Reader (USB-C): The CODEX Compact Drive Reader is a cost-effective, bus-powered, single-slot card reader/writer that can be used to access data stored on CODEX Compact Drives. The base of the reader contains a magnetic plate which allows you to securely stack readers on top of each other. The reader is bus-powered via USB-C connector (compatible with Thunderbolt 3), offering a USB 3.2 Gen 2 interface (backwards compatible), that will work on macOS and Windows. Original camera files can be copied using your preferred data management application. 1-year limited warranty. The transfer time varies depending on the system configuration, like speed of target drive and specification of the USB port (USB 3.2 Gen 2, i.e. 10 Gbps and 3 A power required to allow full performance). USB-C cable included.
Included in box

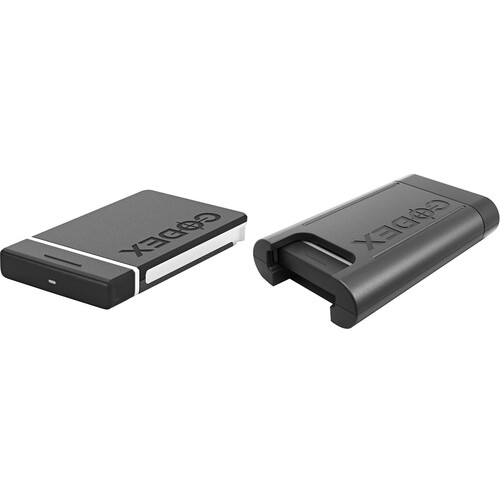

3x ARRI 1TB CODEX Compact Drive Express
1x CODEX Compact Drive Reader (USB-C)
About the ARRI 1TB CODEX Drive Express and Reader Bundle
ARRI 1TB CODEX Drive Express:
The CODEX Compact Drive Express 1TB was created exclusively to allow Apple ProRes recording on the ALEXA 35. The Drive offers 960 GB usable capacity and up to 8 Gbps ( ~950 MB/s) write speed, so you reach the same max fps for Apple ProRes recording as the regular 1TB Drive.
ALEXA 35 recording capacity at 24 fps
– approx. 1hr 20min UHD Apple ProRes 4444XQ
– approx. 2hrs UHD ProRes 4444.
Notes
– This drive is only supported in the ALEXA 35 and ALEXA 35 Live. It does not work in any other camera.
– The Compact Drive Express 1TB is marked with a white ring.
CODEX Compact Drive Reader (USB-C):
The CODEX Compact Drive Reader is a cost-effective, bus-powered, single-slot card reader/writer that can be used to access data stored on CODEX Compact Drives. The base of the reader contains a magnetic plate which allows you to securely stack readers on top of each other. The reader is bus-powered via USB-C connector (compatible with Thunderbolt 3), offering a USB 3.2 Gen 2 interface (backwards compatible), that will work on macOS and Windows.
Original camera files can be copied using your preferred data management application.
1-year limited warranty.
The transfer time varies depending on the system configuration, like speed of target drive and specification of the USB port (USB 3.2 Gen 2, i.e. 10 Gbps and 3 A power required to allow full performance). USB-C cable included.
ARRI 1TB CODEX Drive Express
CODEX Model No CX.0001090
Capacity 960 GB usable space
Memory Type NVMe SSD
Interface PCIe Gen3
Dimensions 45 x 77 x 10mm
Weight 85 g
Operating temperature 0 to 70°C (32 to 158°F)
Storage temperature -40 to 85°C (-40 to 185°F)
Transfer speed up to 20 Gbps read, 8 Gbps write
Insertion/removal durability 10,000 actions
Shock resistance (1/2 sine pulse, 0.5ms) 1500G
Vibration resistance (7~800Hz) 3.08Grms
CODEX Compact Drive Reader (USB-C)
CODEX product code CX.0001005
Supported operating system macOS 10.14.4 or higher / Windows 10
Interface USB-C
Power bus powered
Dimensions 72 x 123 x 25 mm
Weight 160 g
Operating temperature -5 to 40°C (25 – 104°F)
Transfer speed Up to 8 Gbps read
Insertion/removal durability 10,000 actions
