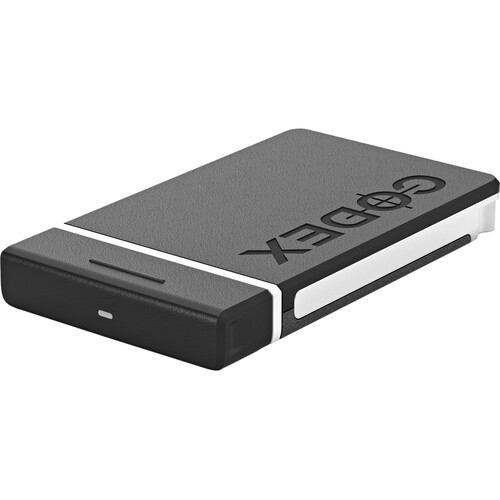

ARRI 1TB CODEX Compact Drive Express

Overview
The CODEX Compact Drive Express 1TB was specifically designed for Apple ProRes recording on the ALEXA 35. With 960 GB usable capacity and up to 8 Gbps write speed, it allows for the same maximum fps for Apple ProRes recording as the regular 1TB Drive. This means ALEXA 35 recording capacity at 24 fps is approximately 1 hour and 20 minutes for UHD Apple ProRes 4444XQ, and around 2 hours for UHD ProRes 4444.

It is important to note that this drive is only compatible with the ALEXA 35 and ALEXA 35 Live cameras, and will not work with any other camera models. The Compact Drive Express 1TB is easily identifiable by the white ring marking on the drive.

Included in box
1x ARRI 1TB CODEX Compact Drive Express

About the ARRI 1TB CODEX Compact Drive Express
The CODEX Compact Drive Express 1TB was created exclusively to allow Apple ProRes recording on the ALEXA 35. The Drive offers 960 GB usable capacity and up to 8 Gbps ( ~950 MB/s) write speed, so you reach the same max fps for Apple ProRes recording as the regular 1TB Drive.

ALEXA 35 recording capacity at 24 fps
– approx. 1hr 20min UHD Apple ProRes 4444XQ
– approx. 2hrs UHD ProRes 4444.

Notes
– This drive is only supported in the ALEXA 35 and ALEXA 35 Live. It does not work in any other camera.
– The Compact Drive Express 1TB is marked with a white ring.

CODEX Model No CX.0001090
Capacity 960 GB usable space
Memory Type NVMe SSD
Interface PCIe Gen3
Dimensions 45 x 77 x 10mm
Weight 85 g
Operating temperature 0 to 70°C (32 to 158°F)
Storage temperature -40 to 85°C (-40 to 185°F)
Transfer speed up to 20 Gbps read, 8 Gbps write
Insertion/removal durability 10,000 actions
Shock resistance (1/2 sine pulse, 0.5ms) 1500G
Vibration resistance (7~800Hz) 3.08Grms
