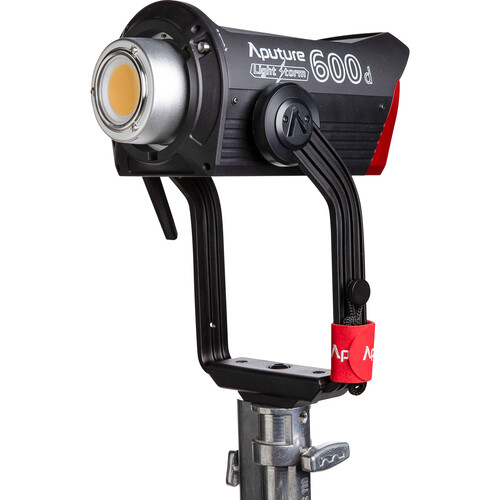

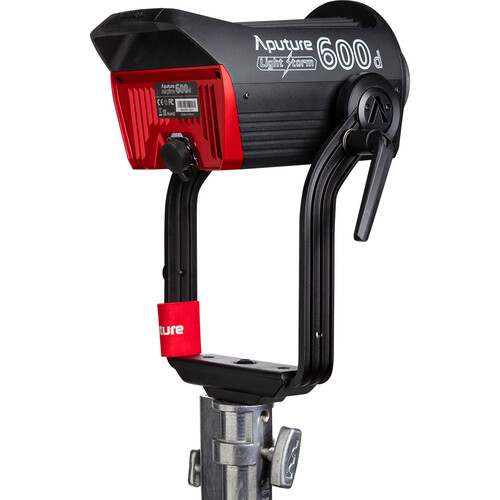

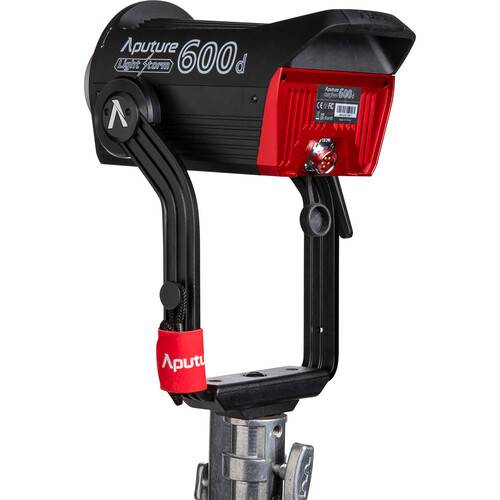

Aputure LS 600D Light – UK

Overview
The Aputure LS 600d Pro is a highly versatile and powerful lighting fixture that is perfect for professional use. With an output of 29,300+ lux at 3m using the F10 Fresnel and 8,500+ lux at 3m with the Hyper-Reflector, it is comparable to a 1200W HMI or Joker 800. It also offers 0-100% brightness control in 1% step increments, ensuring precise lighting control. The LS 600d Pro boasts a high color accuracy with CRI ≥96, TLCI ≥96, and SSI (D56): 72, making it a top choice for indie filmmakers and professionals. It also offers multiple control methods including 2.4GHz remote, Sidus Link Bluetooth app control, and 5-Pin DMX512 In & Out.

The LS 600d Pro is designed with professionals in mind, featuring a weather-resistant construction, 0.1% stepless dimming, and professional level lighting controls such as Sidus Link, Art-net, and Wireless DMX. It also offers intelligent power options, with support for 48V DC input power at 15A and the ability to achieve half output with 2x V-Mount batteries. The LS 600d Pro is compatible with Bowens mount light modifiers and has a curved, handbrake-locking yoke with 360-degree rotation for easy positioning. With its built-in lighting effects and 4 dimming curves, the LS 600d Pro offers a wide range of creative possibilities for any filmmaker. Despite its intense output, it operates quietly and is lightweight enough for run-and-gun operation.

Included in box
1 x LS 600d Lamp Head
1 x LS 600d Control Box
1 x LS 600 Series 5-Pin Weatherproof Head Cable (3m)
1 x Neutrik powerCON TRUE1 TOP AC Power Cable (6m)
1 x Lightning Clamp
1 x LS 600d Rolling Case

About the Aputure LS 600D Light – UK
PRODUCTION READY

Every aspect of the LS 600d Pro was designed with professionals in mind, with incredible output, a weather-resistant construction, a wide variety of power options, and professional level lighting controls, including Sidus Link, Art-net, and Wireless DMX. This is the LS 600d Pro, and it’s ready to blow away traditional lighting.

UNMATCHED BRIGHTNESS

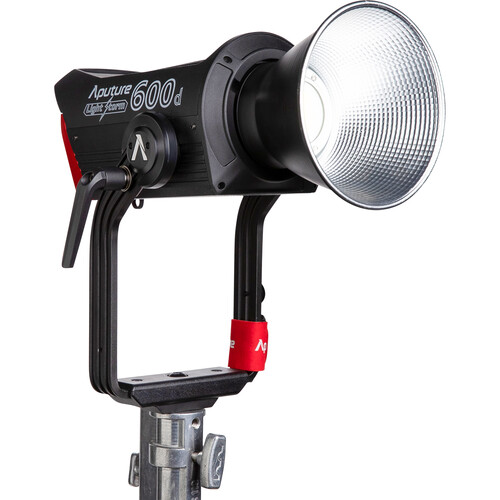

Equipped with its native Hyper-Reflector, the 600d Pro can output 8,500 lux at 3 meters (10 feet). With the F10 Fresnel modifier, the combination can reach an illuminance of 29,300 lux at 3 meters in 15° spot. With a maximum power draw of 720W, the 600d Pro is on par with industry-standard HMI lights.

WEATHER-RESISTANCE

The LS 600d Pro is the first Light Storm fixture, and the first Bowens Mount LED to feature a weather-resistant design. Using waterproof fans, sealed internal structures, rubber caps for all ports, and weatherproof connectors, the LS 600d Pro can withstand various inclement weather environments.

0.1% STEPLESS DIMMING

The 600d Pro is the first product in the Light Storm series to not only feature enhanced, smooth, stepless dimming but also light control in tiny 0.1% increments, ensuring that you get the exact amount of light that you need.

PROFESSIONAL CONTROL

In addition to its responsive on-board controls, 2.4G remote, DMX512 5-Pin XLR In and Out, and Sidus Link app compatibility, the LS 600d Pro is the first-ever Aputure light to support ArtNet and LumenRadio wireless DMX compatibility.

IMPECCABLE COLOUR

With high colour accuracy measurements of CRI≥96, TLCI≥96, CQS≥95, and an SSI (D56) score of 72, the 600d Pro provides consistently accurate white light for indie filmmakers and professionals alike, upholding a color temperature standard of 5600±200K.

INTELLIGENT POWER

The LS 600d Pro utilizes the most advanced power system in the LED marketplace, featuring a standard 3-pin XLR 48V (15A) DC input, as well as multi-voltage V-Mount or Gold Mount battery plates, allowing users to high-output 14.4V, 26V, 28.8V* batteries.

BATTERY CHARGING FUNCTIONALITY

When the LS 600d Pro is plugged into AC power, it becomes the first fixture that can double as a high-intensity light and a backup charger for V-Mount & Gold Mount batteries. This revolutionary technology from the 600d Pro opens up a wide variety of options for any filmmaker.

4 DIMMING CURVES

The LS 600d Pro, like the other recent additions to the Light Storm lineup, has four different dimming curve options. Each of these dimming curves has a unique output behavior to tailor each light and its cues to each technician and situation at hand.

BUILT-IN LIGHTING FX

The LS 600d Pro can utilize 8 different built-in light effects: “Paparazzi”, “Fireworks”, “Lightning”, “Faulty Bulb”, “TV”, “Pulsing”, “Strobe”, and “Explosion”. The 600d Pro also has the potential to expand further into the SidusPro FX ecosystem.

ACTIVE COOLING

The ultra-quiet and powerful heat-conducting fan allows the lamp to move large volumes of air to dissipate heat at ≤30 decibels at 1 meter, and does not cause excessive noise interference on your film set.

RUN-AND-GUN OPERATION

By using LED technology and separating the lamp head and control box, the LS 600d Pro’s optimized lamp head weighs only 4.3kg (9.48lbs), making it lightweight enough to be suitable for baby pin light stands, with the same Dual Junior/Baby Pin found on the Nova P300c and the Spotlight Mount.

BOWENS MOUNT

Continuing Aputure’s philosophy of modular lighting control, the 600d Pro’s Bowens Mount makes it compatible with Aputure’s lighting modifiers like the F10 Fresnel, Light Dome II, Spotlight Mount, and Lantern 90, but also third-party accessories from companies like DoPchoice and Chimera Lighting.

Due to its intense output, the LS 600d Pro is not compatible with all modifiers in their original configuration. For more information, please visit the Support Tab.

ADVANCED UI

The LS 600d Pro is also the first Aputure fixture to utilize a detailed LCD screen interface, allowing users to making operating the light incredibly straightforward

DURABLE TRANSPORT CASE

The LS 600d Pro comes standard with a durable carrying case that features wheels and a telescoping handle, making transporting the fixture to and from set a breeze.

SIDUS LINK ECOSYSTEM

Sidus Mesh integration allows the 600d Pro to be controlled from nearly any smartphone or tablet with the Sidus Link mobile app up to 400 meters away with the addition of other fixtures, including the Aputure LS C300d II, LS 300x, Accent B7c, MC, and Nova P300c.

CCT 5600K±200K
CRI ≥96
TLCI ≥96
CQS ≥94
SSI (D56) ≥72
TM-30 RF (Average) 92
TM-30 RG (Average) 102
Beam Angle
(No Accessories) 105°
LS 600 Series Hyper Reflector 55°
F10 Fresnel 15° ~ 45°
Lumens 62,187lm
Max Power Output ≤600W
Max Power Consumption ≤720W
Max Operating Current 8A Max
Operating Voltage (Power Supply) 100V~240V, 50Hz/60Hz
Operating Voltage (Battery)
V-Mount (Two Batteries) / Half Output 12.5V-16.8V (14.4/15A)
22V-33.6V (26V/8.5A, 28.8V/7.5A)
3-Pin XLR (48V DC) / Full Output 48V/15A
DC Input 1x 48V 3-Pin XLR DC Input (720W)
Operating Temperature -20°C ~ 45°C / -4°F ~ 113°F
Dimming 0-100%; Linear, Exponential, Logarithmic, S-Curve
Control Methods On-board, 2.4GHz, Sidus Link (Sidus Mesh™), 5-Pin XLR DMX512 In & Out
Wireless Operating Range (Bluetooth) ≤80m
Wireless Operating Range (2.4GHz) ≤100m
Screen Type OLED
Firmware Upgradeable USB (FAT16/FAT32), Sidus Link
Cooling Method Active Cooling
Cable Type
Head Cable LS 600 Series 5-Pin
Weatherproof Head Cable (3m)
Max Head Cable Length 7.5m
Power Cable Neutrik® powerCON TRUE1
TOP AC Cable (6m)
Construction Material Magnesium Alloy
Accessory Mount Bowens Mount
Tilt Angle 360°
Mounting 16mm / 28mm – 5/8in (Baby Pin) / 1.125in (Junior Pin)
Carrying Case Telescoping Handle, Wheels
Estimated LED Lifetime (L70) 50,000H
Est. Colour Shift Over Lifetime (CCT) 2% (6,000H)
Est. Max Flicker-Free FPS 2,000 FPS
Certifications CE, FCC, ROHS, KC, NCC, PSE, BIS
Weight
Lamp Head w/ Yoke 4.69kg / 10.34lbs
Control Box / V-Mount 3.24kg / 7.14lbs
Lightning Clamp 670g / 1.48lbs
Total w/ Case 16.71kg / 36.84lbs
Dimensions
Lamp Head w/o Yoke 30.8 x 15.61 x 15.01cm / 12.13 x 6.15 x 5.91in
LampHead w/ Yoke 30.8 x 25.03 x 45.6cm / 12.13 x 9.85 x 17.95 in
Control Box / V-Mount 28.2 x 15.4 x 9cm / 11.1 x 6.1 x 3.54in
Lightning Clamp 10.35 x 8.74 x 12.5cm/ 4.07 x 3.44 x 4.92in
Rolling Case 60.7 x 40 x 37.2cm / 23.9 x 15.75 x 14.65in

29,300+ lux @ 3m with the F10 Fresnel
8,500+ lux @ 3m with the Hyper-Reflector
Comparable to a 1200W HMI or Joker 800
0-100% Brightness Control in 1% Step Increments
CRI ≥96, TLCI ≥96, SSI (D56): 72
Multiple Control Methods: 2.4GHz Remote, Sidus Link Bluetooth App Control, 5-Pin DMX512 In & Out
Can Achieve Half Output with 2x V-Mount (14.4V/15A, 26V/8.5A, 28.8V/7.5A)
Supports 48V DC Input Power @ 15A, Including
Battery Power Stations & Block Batteries (3-Pin XLR)
LS 600 Series Hyper Reflector for Increased Output
Accepts Bowens Mount Light Modifiers
Curved, Handbrake-Locking Yoke with 360° Rotation
Dual Junior/Baby Pin (16mm / 28mm | 5/8in / 1.125in)
6m Weatherproof Locking Neutrik Power Cable
Built-in Lightning Clamp Quick Release Plate
4 Dimming Curves: Linear, Exponential, Log, S-Curve
8 Built-in Lighting FX: Paparazzi, Fireworks, Lightning, Faulty Bulb, TV, Pulsing, Strobe, & Explosion
