Aputure INFINIMAT 20×20 Kit – UK

Overview
Modular Full-Colour RGBWW LED Mats with Inflatable Softboxes are available in various sizes, with options ranging from 1×2 to 20×20 feet. Different power supplies are also available depending on the size of the INFINIMAT, with multiple mounting and rigging methods provided for easy installation. Lamp heads are designed with modules for easy replacements, and multiple INFINIMATS can be powered and controlled using a single control box.

The INFINIMATs feature a wide CCT range from 2,000K to 10,000K, with green-magenta adjustment and over 90% coverage of colors within the Rec. 2020 color space. Advanced connectivity options, rugged IP65 weather-resistant construction, and double the output compared to competitors make the INFINIMATs a versatile and reliable choice for professional motion picture production.

Summary
Colour temperature: 2,000K – 10,000K

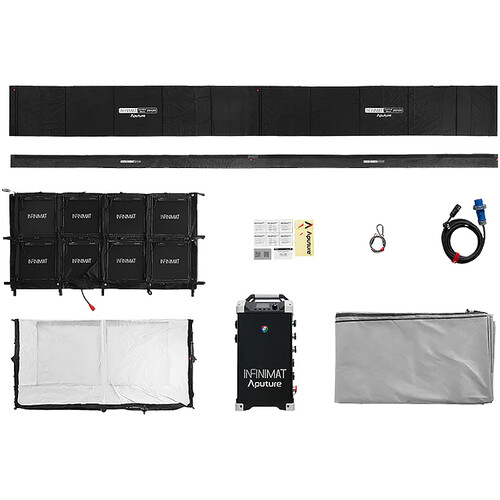

Included in box

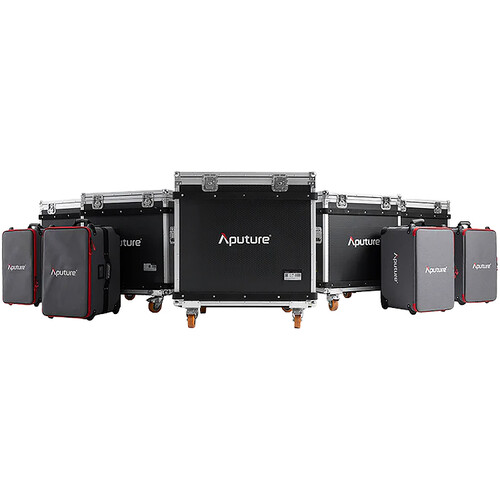

2x Flight Case
4x Aputure INFINIMAT 8×8
4x Aputure INFINIMAT 15m Head Cable (1600W)
4x Aputure INFINIMAT Inflatable Softbox 8×8
4x Aputure INFINIMAT Light Control Skirt 8×8
4x Aputure INFINIMAT Patch Kit
4x Aputure INFINIMAT Air Pump Max
4x Aputure INFINIMAT Cushion 8×8
4x Aputure INFINIMAT Control Box 1600W
4x AC Cable – 1600W
4x Aputure Control Box Trolley
4x Safety Rope (1.3m)
1x Carrying Case
4x Aputure INFINIMAT Light Control Grid 8×8
1x Aputure INFINIMAT Inflatable Softbox 20×20
1x Aputure INFINIMAT Light Control Skirt 20×20
1x Aputure INFINIMAT Light Control Grid 20×20

About the Aputure INFINIMAT 20×20 Kit – UK
The Aputure INFINIMATs are a family of full-color RGBWW pixelated LED light matswith inflatable softboxes. With multiple mat size options, head-to-toe IP65 weatherresistance, and the ability to power and control multiple light mats using a singlecontrol box, the INFINIMAT family is an adaptable system of lights that are easilydeployable in challenging filming environments where fixture weight and set upspeed are of the utmost importance.

Each INFINIMAT is designed to seamlessly secure to an inflatable softbox ofcorresponding size using a hook-and-loop system around the border of the mats. Theinflated softbox provides the structural support needed to hold the mat, lightingcontrol grid, and skirt together when the entire unit is rigged overhead or on stands.

Each INFINIMAT also features multiple rigging methods. From a carbon fiber supportbracket with a new K-Mount ball head terminating in an extended, knurled baby pinto butterfly, Speed-Rail, and truss frames, all INFINIMATs can be rigged or supportedusing various methods. Coupled with multiple INFINIMAT sizes to choose from andthe ability to stack mats together to create custom soft light source

Depending on the size of the INFINIMAT, users will have two control box options tochoose from: a 400W or 1600W control box. Both control boxes can simultaneouslypower and control multiple lights at a time with power consumption levels up to thewattage of the control box. This improves cable management workflows as well asreduces the weight and complexity of rigged lighting set ups that call for multipleINFINIMATs. In addition, the 400W control boxes have AC power passthrough, whichallow users to daisy chain multiple 400W control boxes together using NeutrikPowerCon cables. This AC power pass through feature further improves the cablemanagement experience of running multiple INFINIMATs as users will only need torun one stinger to an entire array of INFINIMATs

The INFINIMAT’s full-color LED chipset is capable of expanded color controls acrossits wide 2,000K to 10,000K CCT range with green-magenta adjustment and >90%coverage of colors within the Rec. 2020 color space.

Designed for professional motion picture production, the INFINIMATs featureadvanced connectivity options (including Sidus Link app control, LumenRadio CRMX,Art-net & sACN via etherCON, and 16-bit DMX512). And with their rugged IP65 dustand weather-resistant construction, the INFINIMATS can withstand the mostdemanding filming environments without compromising its performance orreliability.

Double the Output
The INFINIMATs are significantly higher in brightness than competitors of the same size, some double the intensity. The increased output makes the INFINIMATs more useful in a variety of production settings, even daylight.

One Controller, Infinite Options
INFINIMAT Control Boxes are universal to the family, making swapping sizes or powering arrays on set simple and quick. Control up to 3 INFINIMATs with the 400W Control Box, and up to 5 mats with the 1600W box.

Infinite Shapes, Minimal Size
INFINIMATs can be used with or without the airbag, strapped in place or mounted to their frames. The airbags quickly inflate/deflate and the lights take up less space on set compared to traditional diffused setups such as book lights. Even the 20×20 is quicker to set up than a standard overhead rig. When not in use, the INFINIMATs pack down small for storage.

Pixel Control at Scale
All INFINIMATs are colour tunable and are configured in 1×2 or 2×2 pixels. The INFINIMAT pixels can be controlled over DMX systems for active motion effects.

Rental Grade Construction
INFINIMATs are designed to last. IP65 weather protection means a sealed system, which also includes metal backing plates for heat dispersion, rigidity, and physical protection for the LEDs. The internal design of the mats and control box are modular for easy service.

Ultra Low Dimming
The INFINIMATs utilize a dual-dimming internal control system which allows them to dim to extremely low levels without colour shift and with fine gradients for a smooth transition. Dimming to as low as 0.1% is possible, up to ten times dimmer than the competition.

Portable Travel Kits
INFINIMATs can store inside their travel cases for shipping and when on set can be staged in their included zipper bags, taking up little space while ready for use. On the 4×4 and smaller sizes the airbag stores deflated on the mat, saving setup time and storage space.

CCT 2,000K – 10,000K
CRI ≥96
TLCI ≥97
CQS ≥95
SSI (Tungsten) TBD
SSI (D56) 73
TM-30 RF (Average) 92
TM-30 RG (Average) 100
Max Power Consumption 7680W
Max Power Output 6400W
Weather Resistance Rating IP65
Pixel Count 64 pixels
Pixel Module 2×2
Softbox Inflation time (Air Pump Max) 20 mins
Full-Inflation Duration 1 days
Operating Voltage DC1&DC2 – 12V-16.8V 22V-33.6V
AC – 100V ~ 264V
Operating Temperature -20ºC ~ 50ºC
Storage Temperature -20ºC ~ 85ºC
Control Methods On-board, Sidus Link App, DMX/RDM, CRMX, etherCON
Firmware Upgradeable Sidus Link, USB Drive
Wireless Range (Bluetooth & CRMX) ≤100m / ≤328.1ft
Control Box Type INFINIMAT Control Box 1600W
Control Box Fan Noise Levels High Speed Mode – TBD
Default Mode – TBD
Silent Mode – TBD
Weight INFINIMAT 8×8 – TBD
INFINIMAT Air Pump Max – TBD
Control Box – TBD
Inflatable Softbox 20×20 – 30kg / 83.73lbs
Light Control Skirt 20×20 – TBD
Light control Grid 20×20 – TBD
Flight Case – TBD
Dimensions INFINIMAT 8×8 – TBD
INFINIMAT Air Pump Max – TBD
Control Box – 27.3 x 26.2 x 55.0cm/ 10.75 x 10.31 x 21.65in
Inflatable Softbox 20×20 – 5.80 x 5.80 x 0.37m / 19.03 x 19.03 x 1.21ft
Light Control Skirt 20×20 – TBD
Light Control Grid 20×20 – TBD
Flight Case – TBD

Modular Full-Colour RGBWW LED Mats with Inflatable Softboxes
1×2, 1×4, 2×4, 4×4, 8×8, and 20×20 (ft) Options Available
400W and 1600W Power Supplies Available (depending on size of INFINIMAT)
Multiple Mounting/Rigging Methods (Carbon Fiber Bracket with KMount Ball Head for 1×2, 1×4, 2×4, & 4×4; Butterfly Frame for 4×4 & 8×8;Truss and Speed-Rail Frame for 8×8 & 20×20)
Lamp Heads Designed With 1×2 or 2×2 Modules to Allow for Easy Module Replacements
Power and Control Multiple INFINIMATS Using a Single Control Box (400W and 1600W Control Boxes Available) • AC Power Passthrough Enables Multiple 400W Power Supplies to Be
Daisy Chained Via Neutrik PowerCon Cables
INFINIMAT 400W Control Box Features Dual V or Gold Mount Battery Mounts for Mobile Power
INFINIMAT 1600W Control Box Supports Battery Operation via Dual 48V DC Inputs
Head-to-Toe IP65 Dust & Water-Resistant Rating for Lamp Head and Control Box
Inflatable Softbox Provides Structural Support for Lamp Head, Diffusion, Light Control Grid, and Light Control Skirt • Automatic Pressure Release Valves on Inflatable Softbox to Prevent Overfilling of Air
Included Air Bag Repair Patches to Ensure Continued Operation of Softbox Even When Punctured
Included Light Control Grid and Light Control Skirt • >90% of Colors Within Rec.2020 Color Space
Fully Tunable CCT from 2,000K to 10,000K
Fully-Tunable Green-Magenta Adjustment • 0.1-100% Stepless Brightness Control – with Improved Low-End Dimming
Advanced HSI with White Point CCT Control • Industry-standard xy (CIE 1931), RGB, Light Source, & 300+ Gel Presets
Multiple Control Methods: Sidus Link App Control, LumenRadio CRMX, Art-net & sACN via etherCON, 16-bit 5
2 Output Modes: Max & Constant
