Aputure INFINIBAR PB6 – EU

Overview

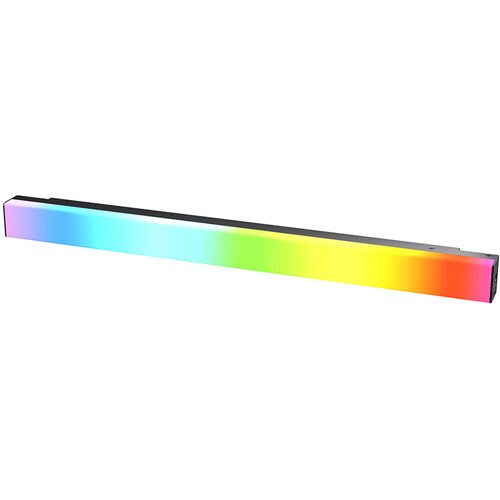

The INFINIBAR Pixel Bar is Aputures first RGBWW full-colour LED pixel bar, measuring 2 feet (60cm) and featuring 48 individual pixels. It offers an infinite blending design to reduce visible gaps when connecting multiple lights, and comes with 10 splicing connectors for various mounting options. The bar also has a frosted diffusion layer for smoother light and reduced glare, and can be controlled with 0-100% brightness and fully tunable CCT from 2,000K-10,000K.

The INFINIBAR PB6 has advanced connectivity methods including Sidus Link app, LumenRadio CRMX, and wired DMX using Aputures USB-C to DMX Adapter. It also has 29 built-in DMX profiles and 9 built-in lighting effects, as well as the ability to save custom effects and music effects. With its lightweight yet durable design and 100-minute battery life, the INFINIBAR PB6 is a versatile and compact lighting fixture for any shooting environment.

Summary
Colour temperature: 2,000K – 10,000K
Mount: INFINIBAR Rail

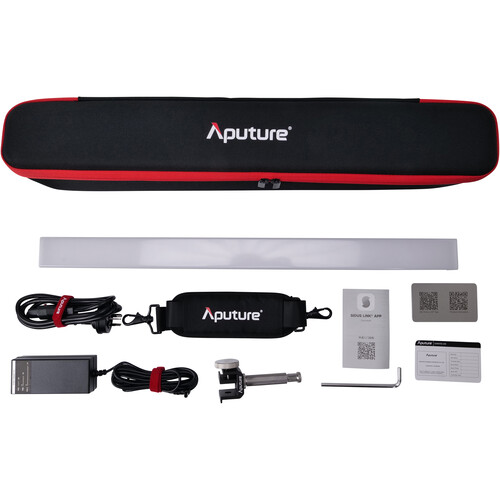

Included in box
1 x INFINIBAR PB6

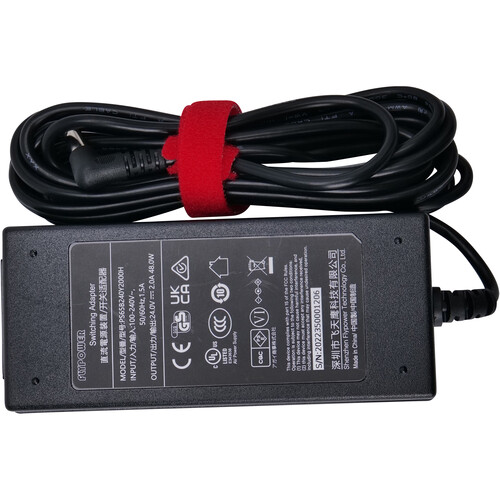

1 x 48W DC Power Adapter (3m)
1 x AC Locking Power Cable (1.5m)

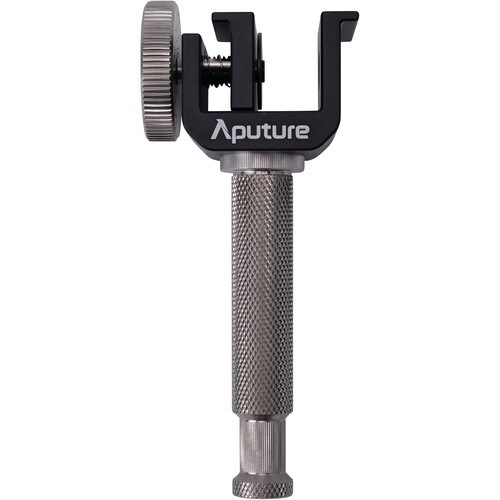

1 x INFINIBAR Clamp to Baby Pin Adapter
1 x INFINIBAR Straight Connector
1 x 5mm Hex Wrench
1 x Carrying Case

About the Aputure INFINIBAR PB6 – EU
The INFINIBAR Pixel Bar is Aputure’s first RGBWW full-colour LED pixel bar. Featuring 48 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB6 is a 2-foot (60cm) pixel bar that excels in constructing unique, colourful designs that bring scenes to life in new and exciting ways.

The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft,or 4ft INFINIBARs together using 10 differently-shaped connectors* to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility. The pixelbar’s infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB6’s 48 RGB pixels.

Featuring advanced wireless connectivity, the INFINIBAR PB6’s 48 pixels can be grouped and controlled via Sidus Link, LumenRadio CRMX, or through wired DMX using Aputure’s USB-C to DMX Adapter.** It also incorporates critical colour controls (including advanced HSI with white point adjustability, RGB, and xy) for full creative freedom. Toggle between 9 built-in System FX and 7 built-in Pixel FX, or save up to 20 Custom FX inthe Sidus Link app for easy access to different light modes.

The INFINIBAR PB6’s proprietary RGBWW chipset produces stunning colour quality throughout its wide CCT range of 2,000K to 10,000K with full green-magenta adjustment, and can reproduce >90% of colours within the Rec.2020 Colour Space. Matching Aputure’s high standards for colour, the INFINIBAR PB6 also produces accurate skin tones, measuring scores of CRI: 96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.

With its lightweight yet durable aluminium housing, the INFINIBAR PB6 provides ultimate flexibility across all shooting environments. Whether linked together or used independently, the INFINIBAR’s built-in magnets, INFINIBAR Rail and Baby Pin Clamp system, and two ¼-20in threads allow the PB6 to be mounted with ease. And with its built-in 29.6Wh Lithium battery, the INFINIBAR PB6 can operate at its 14W max output for 100 minutes, making it a versatile and compact fixture for your lighting toolkit.

* Each INFINIBAR Includes 1 Straight Connector. Remaining 9 Connectors Sold Separately

** Aputure Active USB-C to 5-Pin DMX In & Out Adapter Sold Separately

CCT 2,000K – 10,000K
CRI 96+
TLCI 98+
CQS 96
SSI (D56) 74
SSI (Tungsten) 85
TM-30 RF (Average) 94
TM-30 RG (Average) 103
Colour Chipset RBGWW
Beam Angle (Half-Peak) 120 Degree
Lumens 1,110lm
Max Power Output 14W
Max Power Consumption – Fixture 18W
Max Power Consumption – Power Supply 20W
Operating Voltage & Current – Fixture 24V, 0.9A
Operating Voltage & Current – Power Supply 100V-240V 50/60Hz, 1.5A
Battery Capacity 7.4V, 4000mAh, 29.6Wh
Battery Life Approx. 100 Mins @ Max Output
Charge Time Approx. 120 Mins (24V/1A)
Pixel Mapping 48 Pixels
Operating Temperature -10 C ~ 45 C / 14 F ~ 113 F
Control Methods Sidus Link App, DMX/RDM via USB-C*, LumenRadio CRMX
Wireless Operating Range – Bluetooth ≤80m / ≤262.5ft
Wireless Operating Range – LumenRadio ≤100m / ≤328.1ft
IP Rating IP 20
Screen Type OLED
Firmware Upgradeable Sidus Link, USB-C
Cooling Method Passive Cooling
Mounting INFINIBAR Rail
Dimensions
Fixture 60.4 x 4.5 x 4.3cm / 23.8 x 1.8 x 1.7in
Fixture + Spacer 60.4 x 4.5 x 5.2cm / 23.8 x 1.8 x 2.1in
AC Power Supply 12.0 x 5.3 x 3.2cm / 4.7 x 2.2 x 1.6in
Clamp 12.2 x 5.5 x 4.0cm / 4.8 x 2.2 x 1.6in
Case 68.2 x 12.5 x 12.5cm / 26.9 x 4.9 x 4.9in
Weight
Fixture 1.0kg / 2.2lbs
Fixture + Spacer 1.13kg / 2.49lbs
AC Power Supply 0.49kg / 1.08lbs
INIFNIBAR Clamp 0.27kg / 0.60lbs
Total 1.89kg / 4.17lbs
Est. LED Lifetime (L70) 50,000 Hours
Est. Colour Shift Over Lifetime 2% Over 6,000 Hours
Certifications CE, FCC, KC, NCC, ROHS, RCM, ICES, UKCA,, PSE
Photometrics
CCT
2,000K 0.5m: 635 lux / 59 fc
1.0m: 200 lux / 19 fc
2,700K 0.5m: 935 lux / 87 fc
1.0m: 282 lux / 26 fc
3,200K 0.5m: 940 lux / 87 fc
1.0m: 288 lux / 27 fc
4,300K 0.5m: 978 lux / 91 fc
1.0m: 301 lux / 28 fc
5,600K 0.5m: 1,026 lux / 95 fc
1.0m: 317 lux / 29 fc
6,500K 0.5m: 1,048 lux / 97 fc
1.0m: 328 lux / 30 fc
7,500K 0.5m: 1,046 lux / 97 fc
1.0m: 328 lux / 30 fc
10,000K 0.5m: 960 lux / 89 fc
1.0m: 288 lux / 27 fc
Red 0.5m: 189 lux / 16 fc
1.0m: 78 lux / 7 fc
Green 0.5m: 608 lux / 56 fc
1.0m: 188 lux / 17 fc
Blue 0.5m: 97 lux / 9 fc
1.0m: 39 lux / 4 fc
Notes * Aputure Active USB-C to 5-Pin DMX In & Out Adapter Sold Separately

2-Foot (60cm) 14W RGBWW Full Colour LED Pixel Bar
48 Individual Pixels (Lighting Zones)
Infinite Blending Design to Reduce Visible Gaps When Connecting Multiple Lights
10 Splicing Connectors*: Straight, Triangle Flat, Triangle 3D, Hexagon Flat, Hexagon 3D, 3-Way Flat, 4-Way Flat, 6-Way Flat, Square Flat, Square 3D
Share AC Power Over Multiple INFINIBARs w/ Splicing Connectors

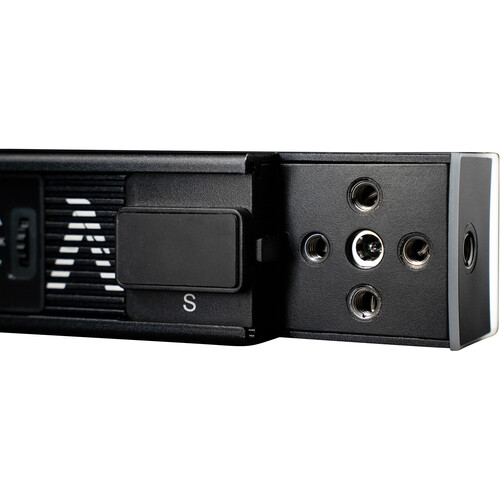

Mounting: INFINIBAR Clamp (Baby Pin) & Neodymium Magnets, 1/4-20in Screw Mount
Frosted Diffusion Layer for Smoother Light and Reduced Glare
Approx. 100 Min Battery Life at Max Output (29.6Wh)
Smart Battery Life Mode: Adjust Runtime to 2/4/6/8 Hours
0-100% Brightness Control at 0.1% Increments
Fully Tunable CCT from 2,000K-10,000K + G/M Adjustment
CRI: ≥96, TLCI: ≥98, TM-30 Rf (Avg.) = 94, TM-30 Rg (Avg.) = 103, SSI(D56) ≥74, SSI(Daylight) ≥85
≥90% of Colours within Rec.2020 Colour Space
Advanced HSI with White Point CCT Control
Industry-standard xy (CIE 1931), RGB, 300+ Gel Presets
Multiple Control Methods: Sidus Link® App, DMX/RDM via USB-C**, LumenRadio CRMX
29 Built-In DMX Profiles: Supports DMX Loss Behaviors
9 Built-in Lighting FX: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
7 Built-In Pixel FX: Colour Fade, Colour Cycle, One Pixel Chase, Two Pixel Chase, Three Pixel Chase, Rainbow, Pixel Fire
Supports SidusPro® FX: Including Manual FX, System FX, Picker FX, Magic Program, and Music FX
Save up to 10 Custom FX and 10 Music FX
Frequency Selection to Reduce Flicker
Included Carrying Case
Available in 8-Light Kit Configurations
Optional Light Control Accessories: 1) Softbox, 2) 45º Slip-On Light Control Grid
* INFINIBAR Includes 1 Straight Connector. Remaining 9 Connectors Sold Separately
** Aputure Active USB-C to 5-Pin DMX In & Out Adapter Sold Separately
