Anton Bauer XT90 V-Mount Battery

Overview
The DIONIC XT battery boasts next generation Li-ion cell technology, providing optimal longevity and performance. With a higher current delivery of up to 12A, it is the perfect choice for demanding cinematographers. The battery also features a new robust case design, specifically designed to complement cine-style cameras and fit into existing flight cases. On the side of the battery, there are P-Tap® and USB power outputs, making it a versatile choice for powering cameras and accessories.

Not only does the DIONIC XT battery deliver peak performance in a compact form, it also excels in extreme temperatures ranging from -20C to 60C (-4F to 140F). Its advanced battery management technology ensures a consistent level of power throughout its lifespan, making it a reliable choice for mission critical situations. With runtime and advanced diagnostics displayed on the onboard backlit LCD or camera viewfinder, cinematographers can easily monitor how much power remains and the batterys overall performance. The DIONIC XT is the go-to choice for high-performing cine gear, providing dependable power for sensitive equipment and lasting over two hours with lightweight and tough options.

Summary
Battery Capacity: 99Wh
Battery Capacity: 99-150Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.4v
Included in box
1 x Anton Bauer Dionic XT90 Li-ion 99WH 12A V-Mount Battery (p/n 86750126)

About the Anton Bauer XT90 V-Mount Battery
Peak performance in compact form. For demanding cinematographers, DIONIC XT is the gold standard for high-performance, consistently reliable mobile power in temperatures from -20C to 60C (-4F to 140F). Delivering 12 amps of constant current to power cameras and accessories simultaneously, and with sophisticated charging technology extending its lifecycle to provide the same consistent level of power throughout its life, DIONIC XT is the perfect choice where dependable power is mission critical.

Drive high-performing cine gear

Delivering 12A of consistently reliable premium power (with 20A peak and 75A inrush) you can count on DIONIC XT to provide dependable power for sensitive high-end imaging equipment. Engineered to withstand the rigors of set life, advanced battery management technology prolongs the life of the battery while protecting your camera, monitor and powered accessories. Run cine and documentary cameras for over two hours with the lightweight, ultra-tough DIONIC XT 90 or power LED panels such as the Litepanels Gemini series at full intensity with the compact DIONIC XT 150.

Confirm runtime and advanced diagnostics.

Use the onboard backlit LCD or your camera viewfinder to see exactly how much runtime remains in minutes or as a percentage, simply tap the Battery to scroll through performing other real-time diagnostics to keep your battery and equipment performing perfectly. DIONIC XT smart technology calculates everything being powered – even devices powered by the USB and P-TAP ports – leaving you free to focus on the action in front of your camera.

Power and Performance when it counts.

Designed to perform on the toughest sets, DIONIC XT batteries are the compact, reliable, travel-safe choice when you need to capture the shot first time – every time! High quality cells in a rugged case ensure consistent power to the most demanding users in temperatures from -20C to 60C (-4F to 140F). when it’s time for Action, with DIONIC XT you have the power.

Reliable power you can take anywhere.

Cleared for take-off. DIONIC XT batteries are safety certified to comply with UN38.3 IATA lithium-ion battery regulations. Independent safety lab testing confirms that DIONIC XT meets the stringent UN regulations and is built to the highest standard.

Mounting V-mount
Nominal voltage 14.4 V
Capacity 99 WH
Amperage 12 A
Display Multi mode, back-lit LCD
Diagnostics On-Board & Charger

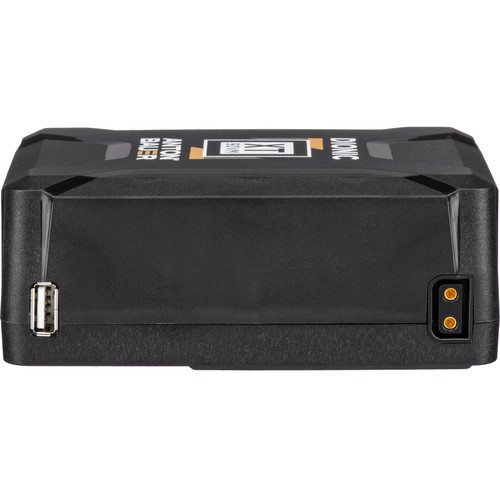

Connections 1 x P-Tap, 1 x USB
Estimated life (cycles) >1000
Temperature range -20C to +60c
Manufacturer warranty 2 years
Weight 0.8 kg (1.76 lbs)
Dimensions 51 x 130 x 97 mm (2.01 x 5.12 x 3.82 inches)

Next generation Li-ion cell technology for optimal longevity and performance
Higher current delivering up to 12A of sustained power
A new robust case design to complement cine-style cameras
Form factor designed to fit existing flight cases
P-Tap® and USB power outputs on side of battery
