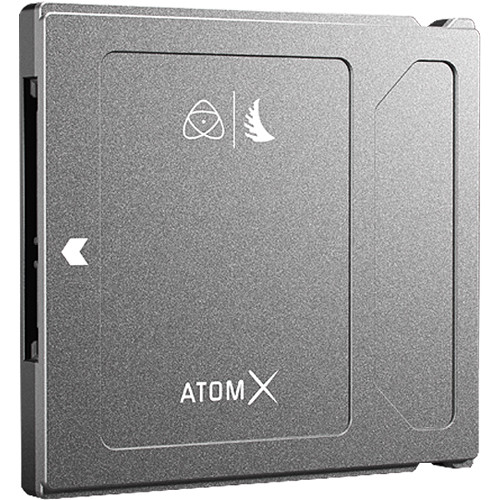

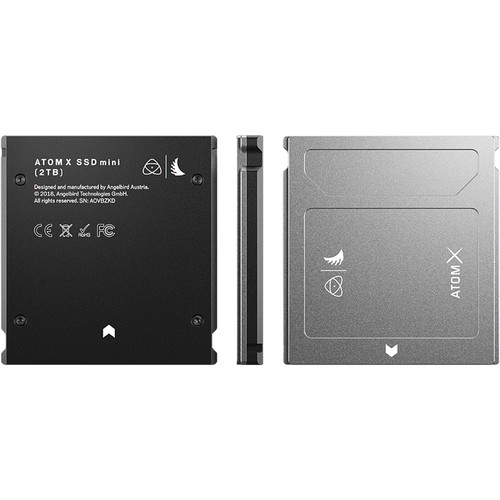

Angelbird AtomX SSDmini

Overview
The AtomX SSDmini by Angelbird is a reliable and durable storage solution specifically designed for Atomos recorders. It features a CNC worked aluminium casing, shock and temperature proof design, and power smoothing technology. With read speeds up to 560 MB/s and write speeds up to 540 MB/s, it can handle CDNG up to 4K 30p and ProRes RAW HQ 5.7K up to 30p. It also includes features such as TRIM, ECC, EMS protection, and SMART monitoring. Plus, it comes with a 3-year limited manufacturers warranty.

The AtomX SSDmini is 20% smaller than the average SSD and is compatible with all Atomos recorders. It offers 1 TB and 2 TB of storage and supports Stable Stream technology to ensure no frames are missed. This SSD is designed to withstand harsh environments and can be used with the entire Atomos range of recorders, including the Sumo19, Sumo19M, and Shogun Studio with the use of an adapter handle.

Included in box
1x AtomX SSDmini (1TB or 2TB)

About the Angelbird AtomX SSDmini
The perfectly matched storage solution for your Atomos recorder. Angelbird’s AtomX SSDmini was custom made for the new Atomos Ninja V monitor recorder and is perfectly compatible with all the other available recorders. The AtomX SSDmini is 20 percent smaller than the average SSD (to fit the small footprint of the Ninja V), offers 1 TB and 2 TB of storage, has sustained read speeds of 550 MB/s and write speeds of 500 MB/s, captures CDNG up to 4K 30p, ProRes RAW HQ 5.7K up to 30p, plus 4K 60p and 2K 240p, sports a SATA III connector, and supports Stable Stream™ technology to never miss a frame.

Whether you are shooting in the desert or the snow-packed mountains, the AtomX SSDmini by Angelbird is your reliable partner. It’s tough, likes it rough, and is made to last. The AtomX SSDmini comes with great endurance to accompany you on your creative journey and to ensure constant performance. Angelbird have made sure that the Atomos Master Caddy guide rail system guarantees perfect docking to the SATA port. And yes, you can even use the new AtomX SSDmini by Angelbird with the entire Atomos range of Ninja and Shogun devices, plus with the use of an adapter handle, even the Sumo19, Sumo19M and Shogun Studio.

General
Form factor SSDmini
Dimensions 75.5 x 9.3 x 80 mm (2.97 × 0.37 x 3.15 inch)
Weight
Weight 90.0g (3.2oz)
Performance
Max Read Speed 560 MB/s
Max Write Speed 540 MB/s
Sustained Read Speed 520 MB/s
Sustained Write Speed 500 MB/s
Access time ~ 0.1 ms
Reliability
MTBF 2,400,000 hours
Data reliability Built-in EDC / ECC function
Data retention 10 years at 25°
Endurance for Video Recording Use 1 TB: up to 2400 TBW
2 TB: up to 4800 TBW
Certifications RoHS, CE and FCC compliant, REACH
Electrical
DC input voltage 5v ± 10%
Power usage (idle/max) 1 tb: 0.35w / 3.5w
Technical
Interface SATA 6 Gb/s, 3 Gb/s and 1.5 Gb/s Supported, SATA 3.1 Compliant
Over provisioning – 9 %
Features Temperature sensor, overload protection,
trim, ecc, ems protection, built-in cache, smart, ncq
Environmental
Shock resitance (operating) 1000 g/0.5ms
Vibration resistance (operating) 2.17 grms
Operating temperature -20 °c ~ +70 °c
Storage temperature -40 °c ~ +85 °c
Operating humidity 5 % to 95 % non-condensing
Supported codecs: 4k60p 2k240p apple prores / avid dnx
5.7k30p 4k60p 2k240p apple prores raw 4k30p cdng

Developed for Atomos
Stable Stream
CNC worked aluminium casing
Up to 5.7K 30p
Read speed up to 560 MB/s
Write speed up to 540 MB/s
Shock and temperature proof
Rock-solid build
Power smoothing
Temperature Sensor
Overload Protection
TRIM
ECC
EMS Protection
Built-In Cache
SMART
3-year limited manufacturer’s warranty
