Overview

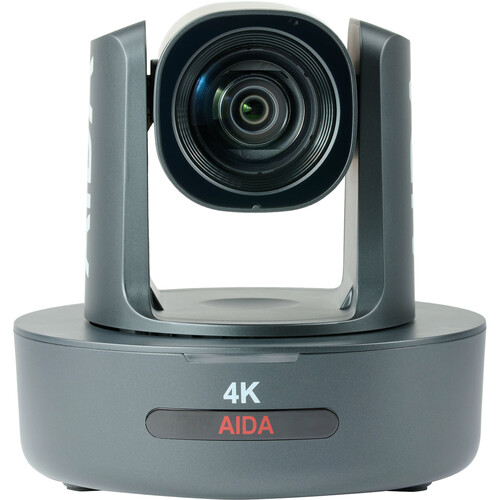

The PTZ4K-NDI-X12 is a cost-effective 4K PTZ camera that is perfect for entry-level studios seeking high-quality video. It is equipped with a 4K SONY CMOS sensor and an advanced digital image processor, allowing for crystal clear video up to 60 frames per second, even in less than ideal conditions. The camera also has a 12X optical zoom module and a wide viewing angle, making it perfect for capturing shots up to 80ft away.
In addition, the PTZ4K-NDI-X12 offers NDI® HX streaming capability for low latency video streaming and PTZ control, as well as simultaneous 4K60p output over HDMI and NDI®|HX/SRT/RTSP/RTMP* and USB3.0**. It also features a motion-compensated temporal noise reduction filter for effective noise reduction without blur, and a 3.5mm line-in for no audio/video delay. With built-in OSD controls and a new AI algorithm operated motion autotracking feature, the PTZ4K-NDI-X12 is a versatile and affordable option for those looking to upgrade to a 4K workflow.
Summary
Focal Length: 3.4-40.3mm
Lens Zoom: 12x Optical Zoom
Resolution and Frame Rate: 4K
Sensor: CMOS
Video Outputs:
HDMI
NDI
USB 3.0
Weight: 2-5kg
Included in box
Remote Controller
Camera Mounting Bracket
Power Adapter & Cable
Safety Harness
About the Aida Imaging PTZ4K-NDI-X12B PTZ Camera – Black
4K PTZ, HDMI, NDI HX, Autotracking, 12X the fun!
Quality 4K PTZ’s shouldn’t be out of affordability. That’s where the PTZ4K-NDI-X12 comes in. With an innate wide zoom angle, to a narrower 12X optical zoomed image, comes the true start to a journey in a 4K workflow. Discover 2160p quality through NDI HX, HDMI, or both. Garner the attention of your viewers through the sheer detail of what is the PTZ4K-NDI-X12.
Did we also mention it has Autotracking movement?
No-Hassle Integration
The usual business – no codes to type in as it should be!
Run’s in the Family
Just like its sibling, the PTZ4K-NDI-X12 shares the same double arm mechanism ensuring silent, accurate motor skills.
Auto-Tracking Enabled!
This PTZ is capable of automatically tracking a target on stage without the use of additional equipment! Track your talent through our A.I. Facial Algorithm for effortless movement tracking. Learn more below!
4K is the name, AIDA’s got the game!
Full-HD streaming only gets so far nowadays with compression. Having 4K resolution downscaled into 1080p however is a quality boost even for the untrained eye!
Controlling our PTZ’s simplified!
Our PTZ is no stranger to communication, boasting SONY VISCA over RS232, VISCA over IP, NDI®, included IR remote, and web UI Control.
Wide Angles Needed!
With a HFOV of 80°, get the most out of limited distance PTZ placements with a perfect wide angle shot. With 12X zoom, you can capture up to 80ft with ease!
Power, Control, and Video..
All over 1 cable with the power of PoE+! Power the camera, control and send video over 1 ethernet cable for the easiest streaming experience ever!
Always staying Visually Inspired
It isn’t an AIDA PTZ camera without simultaneous outputs! Enjoy HDMI, NDI®|HX, and USB at the same time!*
Disclaimer: At 4K60P, only NDI® HX/IP and HDMI, or USB and HDMI can output simultaneously.
Just the two of us!
The PTZ4K-NDI-X12 comes with a black and white option, as it always comes dressed for the occasion.
VIDEO
Image Sensor 1/1.8” Progressive CMOS
Effective Pixels Horizontal: 3840, Vertical: 2160
Pixel Size 2.0 μm (H) x 2.0 μm (V)
Resolution 2160, 1080p & 1080i: 3840×2160, 1920 x 1080
Resolution Rat e 2160 60p/59.94p/50p/30p/29.97p/25p
24p/23.98p
1080 60p/59.94p/50p/30p/29.97p/25p
24p/23.98p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p
Output HDMI
NDI® HX / RTSP / RTMP / SRT
USB 3.0
Color Space 4:2:2 (YCbCr) 10bit
Min. Illumination 0.1Lux
FUNCTION
White Balance Auto, Manual, Auto Tracking, One Push,
Indoor, Outdoor, Temperature
Focus Auto, Manual
Shutter Speed 1 to 1/10,000 Sec
Autotracking A.I. Algorithm Facial Target Tracking
LENS
Lens 12X 4K Optical Zoom
Focal Length 3.4~40.3mm
Viewing Angle 80.5° (wide) ~ 7.6° (tele)
PTZ
Pan/Tilt Range Pan: 340°, Tilt: +90 to -30°
Pan/Tilt Speed Pan: 0° to +120°/s, Tilt: 0° to +80°/s
Presets 128 Positions (via web)
10 Positions (via remote)
AUDIO
Input 3.5mm TRS Stereo Audio Port
Sample Rate 16/24/32 Bits
PHYSICAL
Camera Control Protocol: VISCA, VISCA ovear IP, NDI

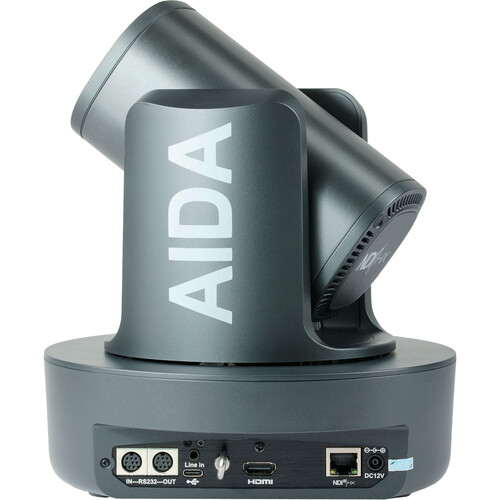

Interface: RS-232C IN & OUT, RJ-45
Remote Controller
Operation Temp 32°F – 104°F
Dimension 197mm x 197m x 186mm / 7.75” x 7.75” x 7.3”
Weight 2.1kg / 4.63 lbs
Power 12VDC (+9 – +15VDC)
PoE+ (IEEE802.3at Standard Required)
NDI® HX streaming capable for low latency video streamingand PTZ control over NDI® HX Protocol.
4K SONY CMOS sensor for crystal clear video up to 60 frames, even in less than ideal video conditions.
Advanced digital image processor provides vivid and detailed images with full access feature sets.
Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.
Simultaneous 4K60p over HDMI and NDI®|HX/SRT/RTSP/RTMP*
Simultaneous 4K60p over HDMI and USB3.0**(Disclaimer: USB and NDI® HX/IP streams will not output simultaneously.)
4K 12X optical zoom module with wide viewing angle, perfect up to 80ft.
3.5mm Line-in for no audio/video delay over HDMI/IP/NDI protocols.
Built-in OSD controls for customizable image settings.
Cost-effective 4K PTZ for entry-level studios looking for UHD quality.
Comes in either a White or Black shell for further customization
Features our new AI algorithm operated Motion autotracking feature.
