Overview
The Accsoon CineView Nano is a compact and lightweight wireless system that offers stability in the market. With a latency of less than 0.06s, it can transmit video up to 500ft/150m, making it suitable for long-distance use. The system supports HDMI input and can connect to up to 4 separate devices using the Accsoon SEE app. It also has a fanless design and can be powered by NP-F batteries or USB-C, making it convenient for on-the-go use. Additionally, it offers features such as automatic channel selection, FHD video and high-quality audio transmission, and easy firmware updates.
The CineView Nano is designed to be compact and portable, measuring only 76mm x 113mm and weighing just 72.3g. It also has an aluminum housing for durability and two integrated antennas to maintain its small size. The system uses 5G WiFi signal to transmit video to up to 4 devices with low latency and a maximum distance of 500ft. It can be easily mounted on a camera or a gimbal, making it suitable for various filming setups. With its user-friendly features and reliable performance, the Accsoon CineView Nano is a great choice for wireless monitoring needs.
Included in box
1 x Transmitter
1 x Phone Clamp
1 x Cold Shoe Mount Adapter
1 x RS2/3 Pro Gimbal Adapter
1 x User Manual
About the Accsoon CineView Nano
Accsoon CineView Nano is a smaller, lighter version of the CineView wireless system. The CineView Nano accepts up to a full HD 1080p60 HDMI signal via a HDMI port, and it wirelessly transmits the signal to up to four separate iOS/Android mobile devices at the same time. The signal is sent over 5GHz up to 500ft line of sight with a low latency of approximately 60ms.
Ultra-Compact, Pocket-Sized Design
About 76mm × 113mm in size, CineView Nano weighs only 72.3g and is less than half the weight of the CineView HE/SE transmitter. It also has an aluminum housing for durability. Two integrated antennas built in to maintain the small size.
HDMI Monitoring Made Easier
CineView Nano features one HDMI-in port and uses 5G WiFi signal to send video wirelessly to up to 4 tablets or phones with both Android or iOS system.
Low Latency, Long Range
With an average latency of around 60ms – Nano has nearly undetectable lag that transmits to a maximum distance of 500ft.
Mounting & Powering

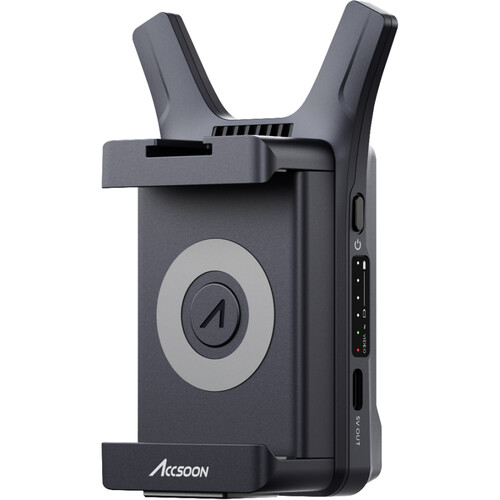

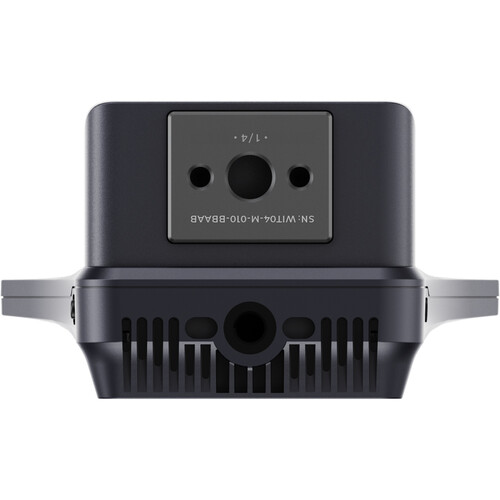

CineView Nano offers a 1/4″-20 mounting point on the bottom and can easily be mounted on your camera. It also features a well-designed phone holder to secure your phone while monitoring.
On Your Gimbal Too
Alternatively, the phone clamp can be detached and replaced with a gimbal attachment plate compatible with DJI RS2/RS3 gimbals. This conveniently situates the CineView Nano underneath the camera mounting plate for optimal balance and ease of access.
Video Input HDMI
Video Output 1080p 23.98/24/25/29.97/30/50/59.94/60fps
Audio 44.1KHz/48KHz 16bit/24bit PCM via HDMI
Latency ＜0.06s (Camera latency not included)
Transmission Power 17~20dBm
Transmission Range 500ft (No obstacles, no interference)
Power Consumption 2.5 Watt (Without charging other devices)
Operating Environment Temperature -10~40°C
Dimensions 76mm × 113mm × 20mm
Weight 72.3g
Video Input HDMI
Video Output 1080p 23.98/24/25/29.97/30/50/59.94/60fps
Audio 44.1KHz/48KHz 16bit/24bit PCM via HDMI
Latency ＜0.06s (Camera latency not included)
Transmission Power 17~20dBm
Transmission Range 500ft (No obstacles, no interference)
Power Consumption 2.5 Watt (Without charging other devices)
Operating Environment Temperature -10~40°C
Dimensions 76mm × 113mm × 20mm
Weight 72.3g
